- Suitable for TRADER BESMOKEY10 220-240V a.c. smoke alarm .
- Wireless Distance: >60m (clear line of sight)
- Frequency: 433.42MHz.
- Interconnection capacity: Maximum 40 devices .
- Size: 45 x 35 x 26mm.
- Temp range: 0°C - 45°C .
- Max Humidity: 5-95%RH.
- Wireless module complies with AS/NZS4268.
- Alarm Signal Pattern when installed in BESMOKEY10: ISO 8201 and AS 3786:2014 compliant

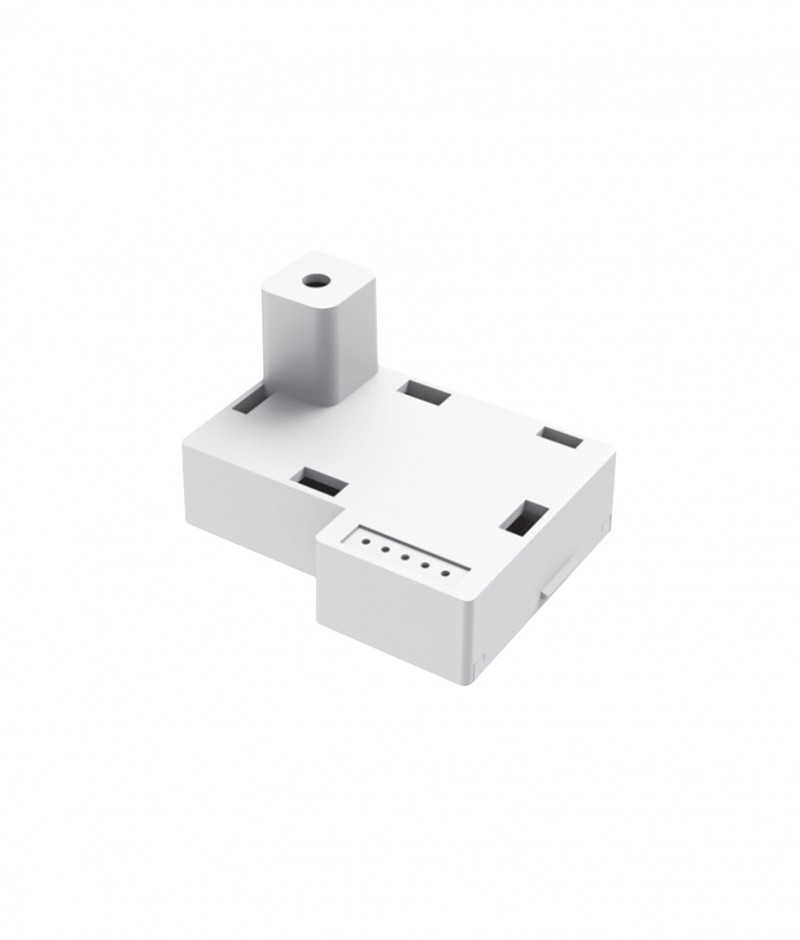

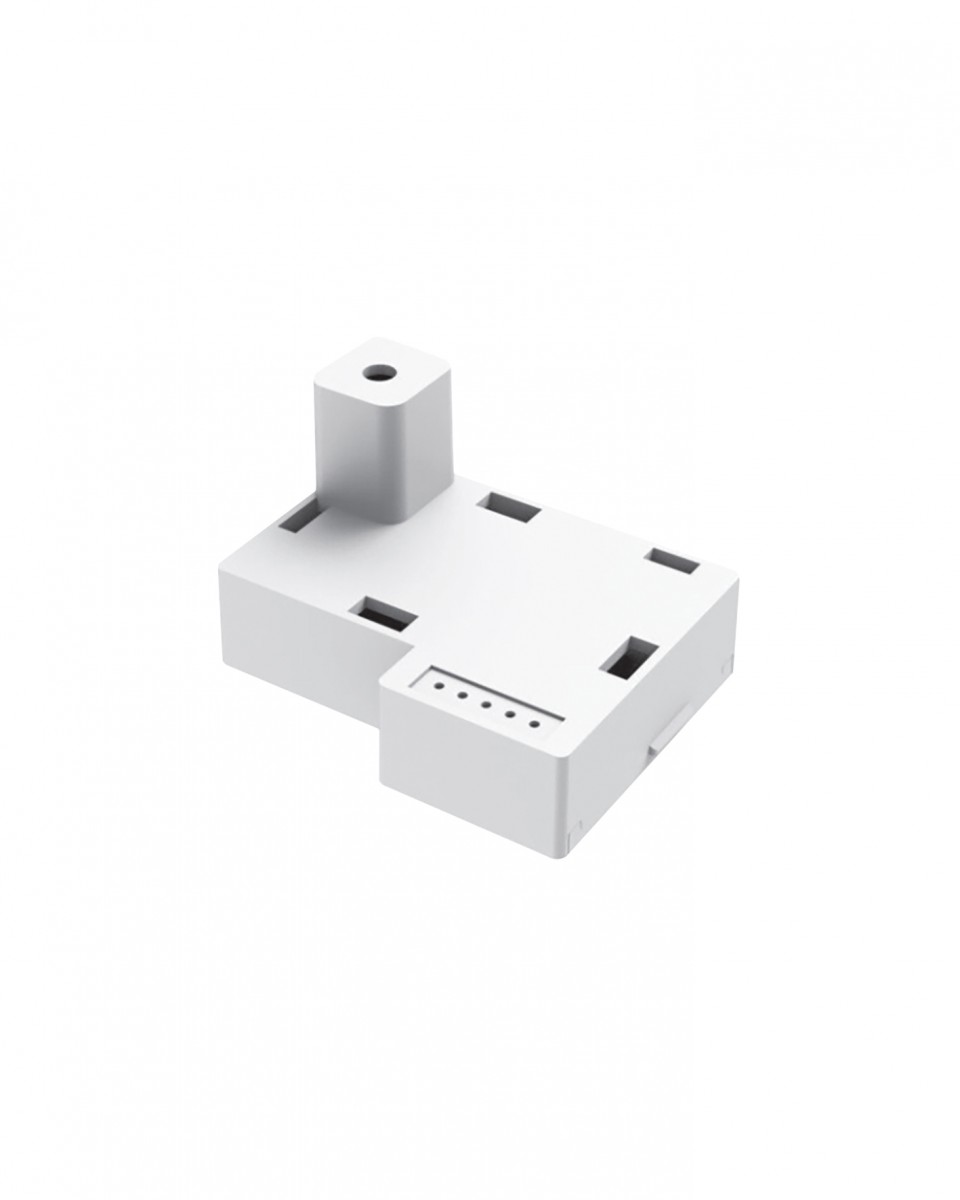

- Introducing Wireless Alarm Option into the network with the BESMOKEY1 0WM module.

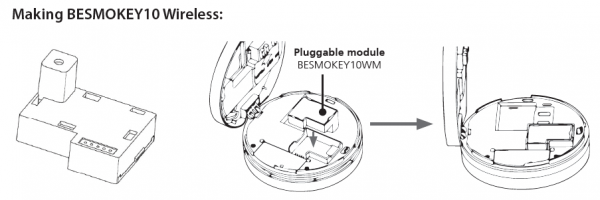

This module can be installed into the BESMOKEY10 by first disconnecting the power and opening one of the mains powered alarms, do this before removing the yellow tag for the battery, replace the blank housing with the BESMOKEY10WM wireless module then remove battery tag to connect power.
The BESMOKEY10WM communicates at 433MHz and can operate at range greater than 60m.
With the power off select one mains wired alarm to be the master for the wireless link and
- install the BESMOKEY10WM.
- BESMOKEY10 Smoke Alarms come with a 10 Year Warranty from date of purchase. BESMOKEY10 Accessories are warranted for 7 Years from date of purchase. Proof of Purchase is required for Warranty Claims – please see www.gsme.com.au for details regarding warranty claims.
Caution: Only install one pluggable BESMOKEY10WM module into a group of mainswired
interconnected alarms. If there is more than one installed with wired connections,
it will not work. Follow the instructions provided to pair the wireless alarms in the
network.
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
