BUC450RG - Coming soon - Trader (GSM Electrical)


BUC450RG - Coming soon

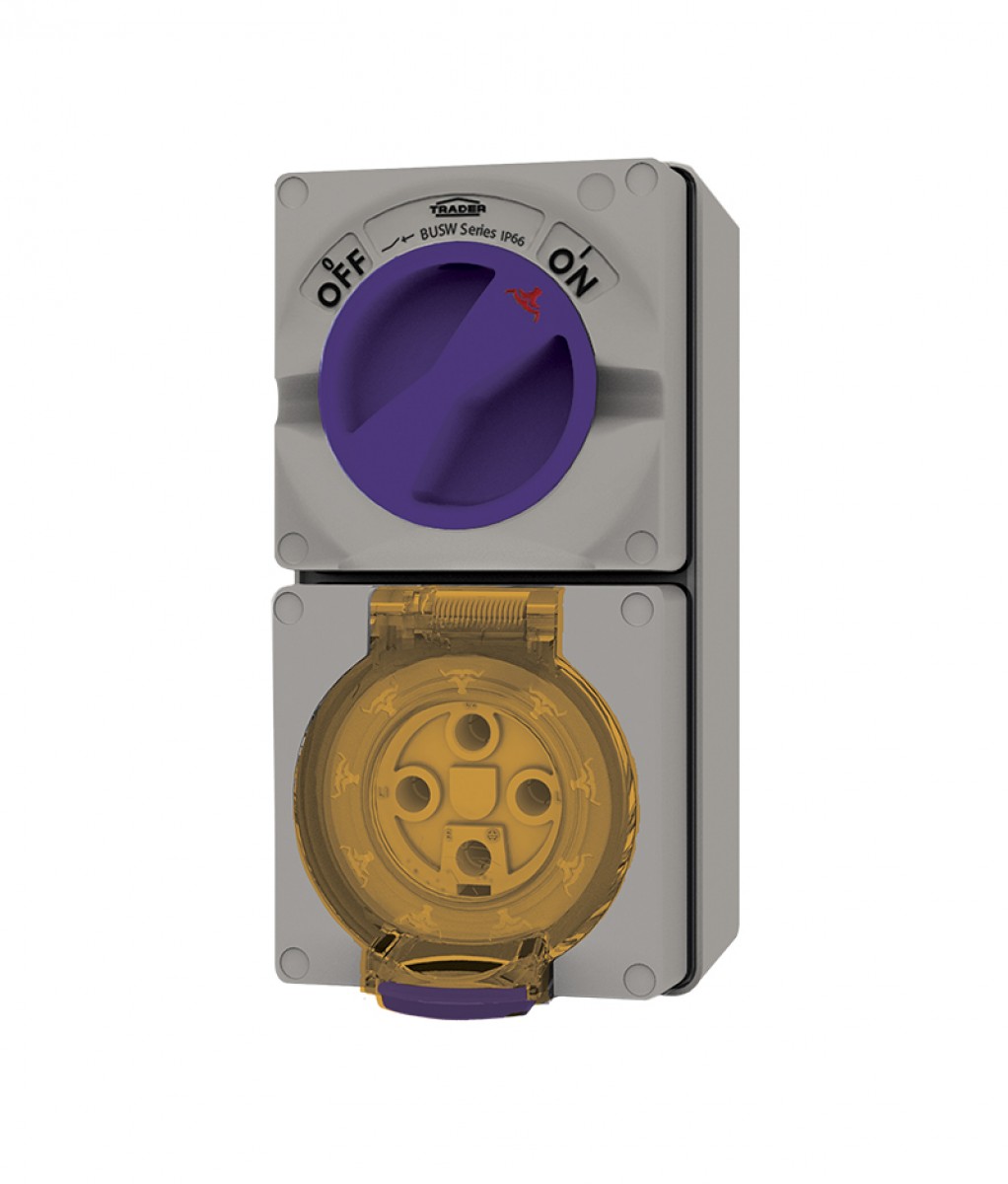

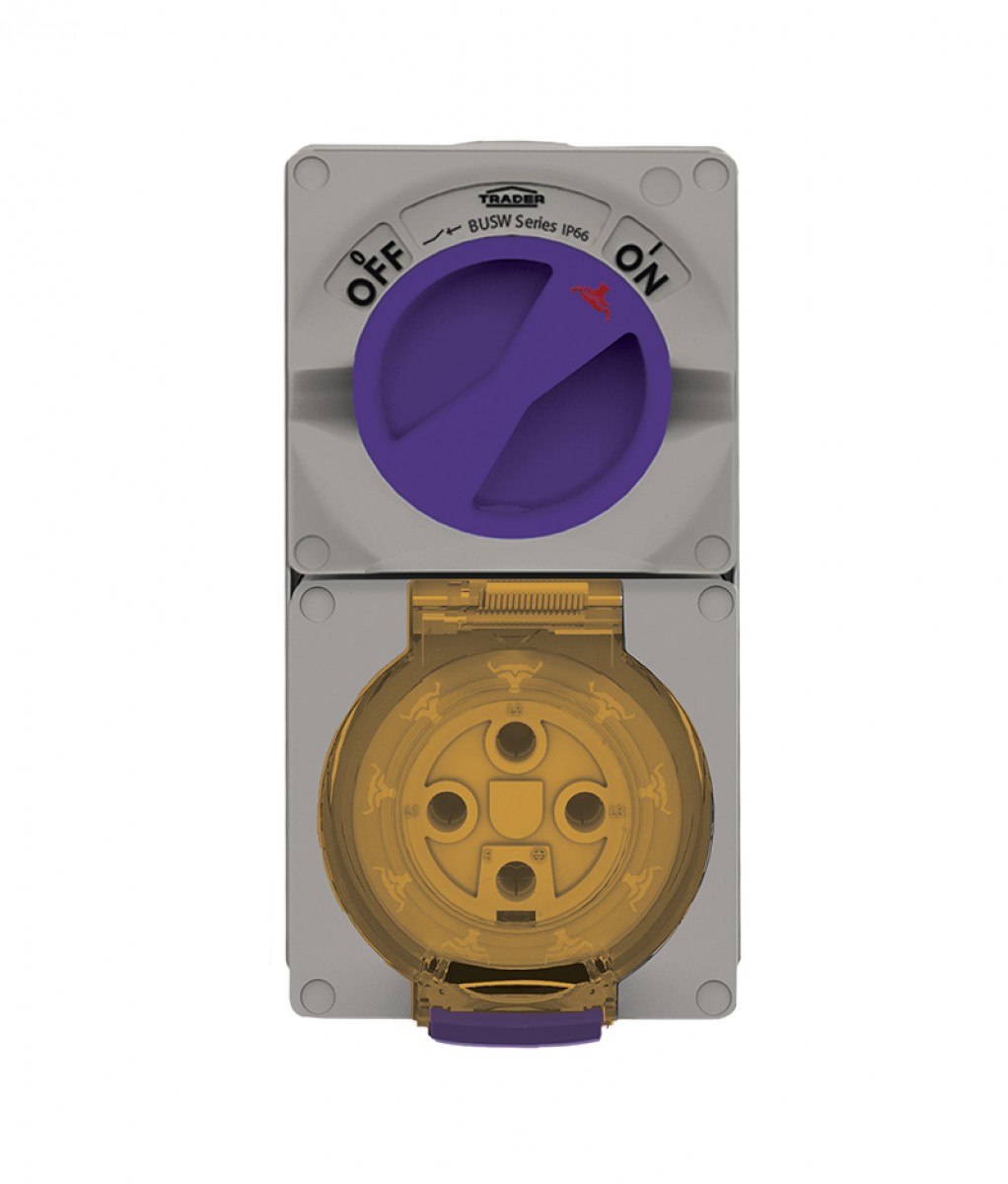

Buffalo - Combination Switched Socket IP66 50A 500V 4 Pin Chemical Resistant Grey

Unit(s)
SKU: BUC450RG Box Qty: 1 unit Categories: Buffalo RG Combo Switches

Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs.

Phase links are factory fitted between switches and sockets.

Small Single phase Flat pin - 10A to 20A
Size 1 Single & Three Phase - 10A- 20A
Size 2 Single & Three Phase - 32A - 50A

Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products.

The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated.

Switch is provided with LED fitment option (not supplied).

Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out.

  • Recommended screw torque for corner cover screws 0.6Nm
  • Recommended torque for Earth/Neutral fixed terminals 2Nm
  • Recommended torque for Switch terminals 2.5Nm Part bag contains twin screwed connector. Not suitable for areas of high UV.
  • Chemical Resistant Grey for alkaline Applications

Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
