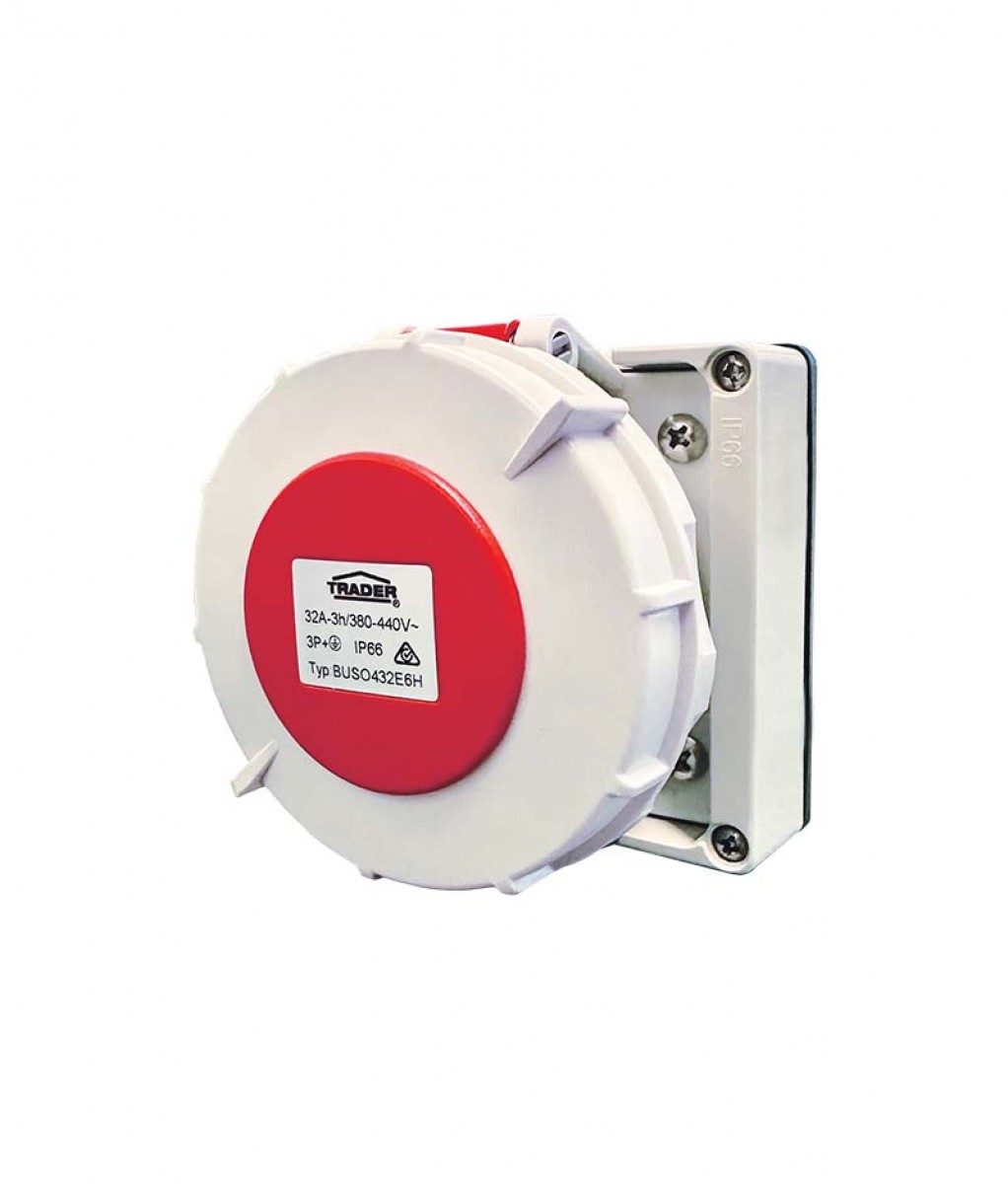

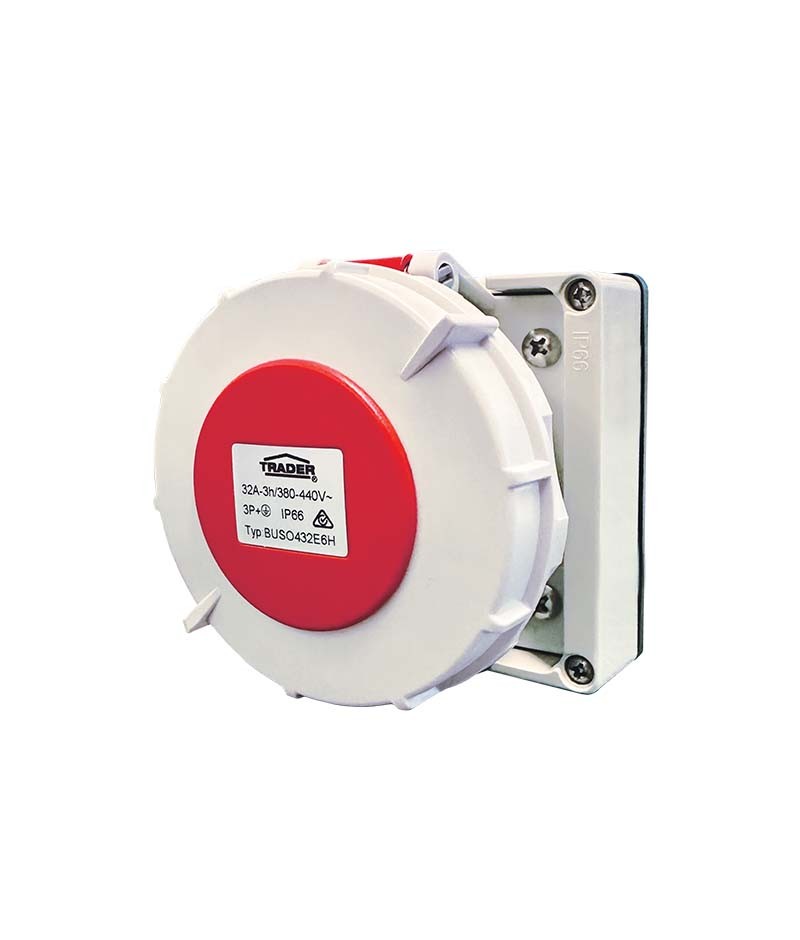

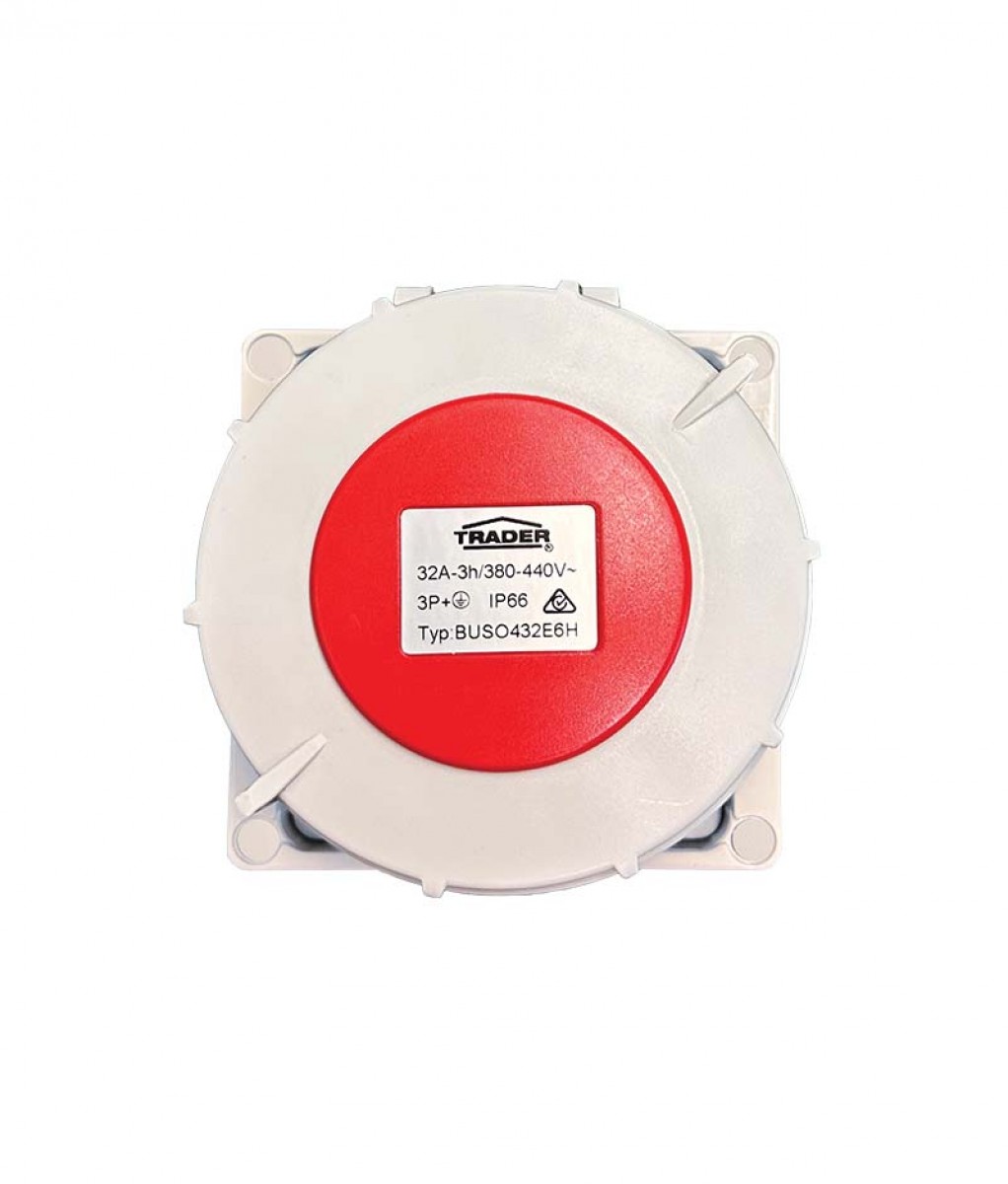

Buffalo IP66 IEC309 Sockets, 32 Amp 380V - 440V IP66 socket, adapted to fit the modular Buffalo series assemblies and back boxes.
Fits combination assembly layouts (Functional with a Buffalo switch BUSW series switch above it)
Ideal for general use where international plugs are used, particularly with the application for industrial plug from refer containers.
Panel Mounting Straight Socket with Nickel -plated socket contacts, Pa66/Pa6 material body on a polycarbonate base.
- Working Temperature: +40, -25º C
- Rated Voltage: 380V - 440V
- Frequency: 50/60Hz
- Poles: 4
- Rated Current: 32A
- Earth pin position at 6 o’clock
- Conforms to European / International standards EN/IEC 60309
- Good corrosion protection in aggressive environments and at high degrees of air humidity due to nickel-plated contacts.
- Highly heat resistant contacts.
- Easy opening and closing of lid though integrated opening bayonet rotating lock.
- Reduced installation time.
- Quality tunnel type terminals which securely clamp the conductor.
- Sold as less enclosure to allow greater flexibility and adaptation to other electrical box assemblies.
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
