- 13 module Enclosure with removable DIN rail assembly.
- Horizontal mount.
- Rated to 100A.
- Earth and neutral link bars provided.
- Includes 6 Module PVC back box with additional top & bottom conduit entries.
- DIN & Link Bar Cradle Assembly can be removed to aid installation of DIN equipment & cabling.

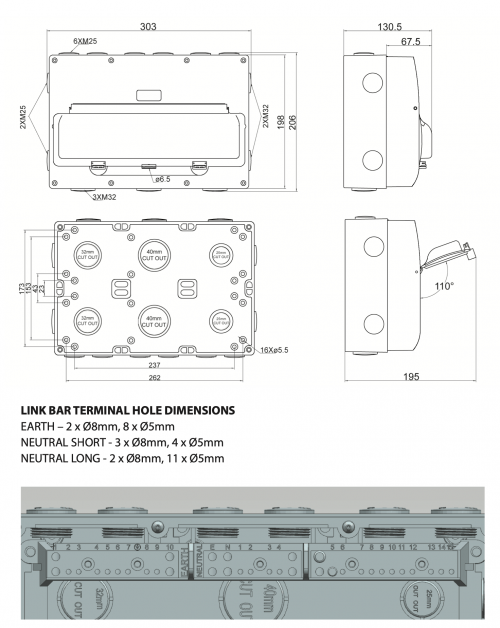

- Back Box has 8 x Ø 25mm & 5 x Ø 32mm conduit entries and 2 x 40mm, 2 x 32mm & 2 x 25mm Ø rear cut-outs.
- Polycarbonate Cover for High Impact Strength.
- UV Resistant material.
- Good level of Chemical Resistance.
- Pole fillers provided to fill unused DIN space.
- Ambient Temperature capability from -25C to +75C.
- Grey colour.
- Installer tip: cover all mounting or cover screws with supplied screw caps & sealant, likewise all conduit entries should be tightened & sealed with sealant.
- Fix cover screws to maximum torque levels of 0.53Nm
- Compliant to AS/NZS 61439.3
- 10 Year Warranty.
