- Up to 90 minutes adjustable delay off setting.
- 0 to 5 minutes adjustable Delay On setting.
- Safety and EMC compliant

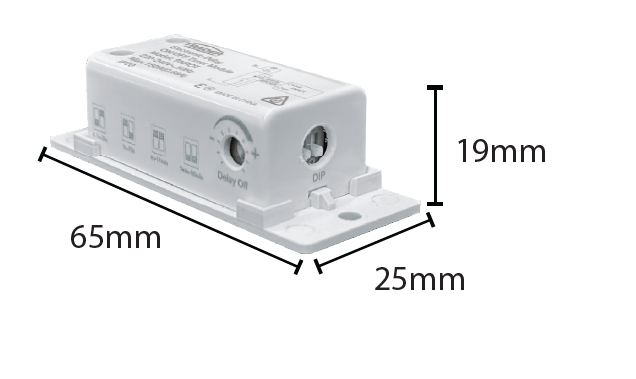

- Compact design with mounting plate to fit directly behind traditional switch panels
- Compatible with most exhaust fan without light version in the market.
- Rated input votlage: 220-240V~
- Rated input frequency: 50Hz
- Operating temperature: -10⁰C to 50⁰C
- Load: Max 150W (0.68A) Motor only
- This product is designed to be installed in equipment enclosures or junction boxes
- Control settings are adjusted via combinations of two dip switches for the time periods and delay-on and delay-off fine-tuned with two potentiometers
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
