- Suitable for connecting cables 3 x 6mm2 or 4 x 2.52
- Terminal tunnels 6.0mm
- Current rating 40A
- Designed for single phase applications and the assembled is rated at 250V~
- Tunnel terminals meet the 80% ruling in clause 2.10.4.2 from AS/NZS3000
- 3 brass terminals suitable for joining into existing cables for those who prefer to have the terminations fixed I the base rather than loose insulated terminals in the box.
- The junction box uses a combination of easy side clips for those who need to assemble the box lid in place prior final fastening down, combined with the fast fix diagonally opposed cover screws.

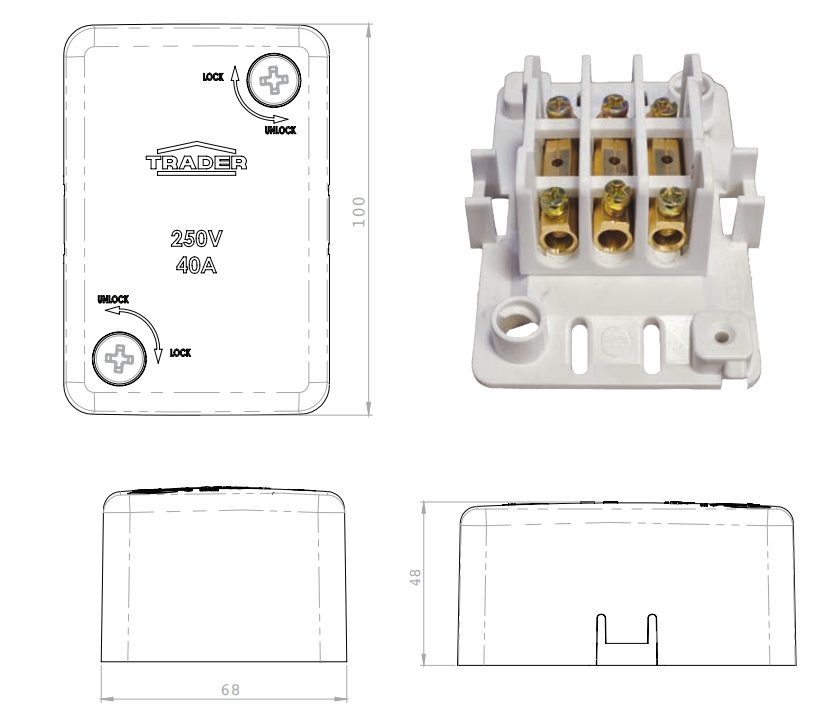

- The Junction box features the same overall size and cut-out features seen in the other HYJB4T series products.
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
