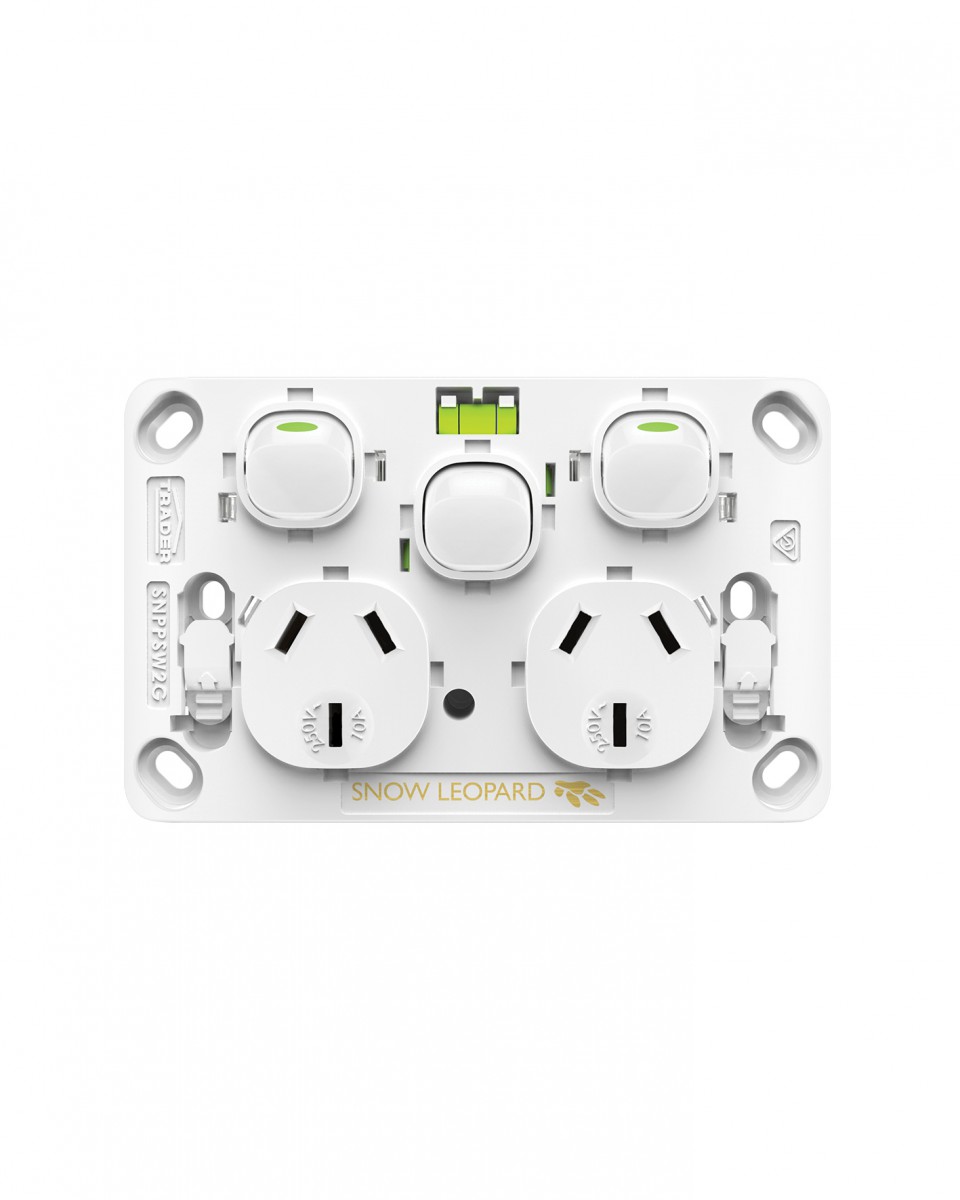

- Socket outlets approved to AS/NZS3112.

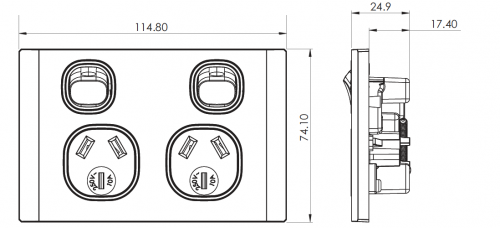

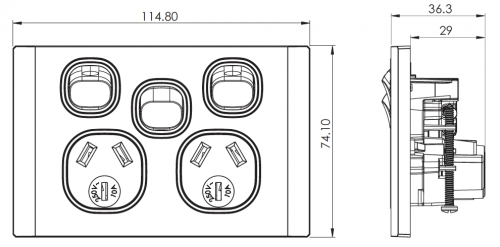

- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

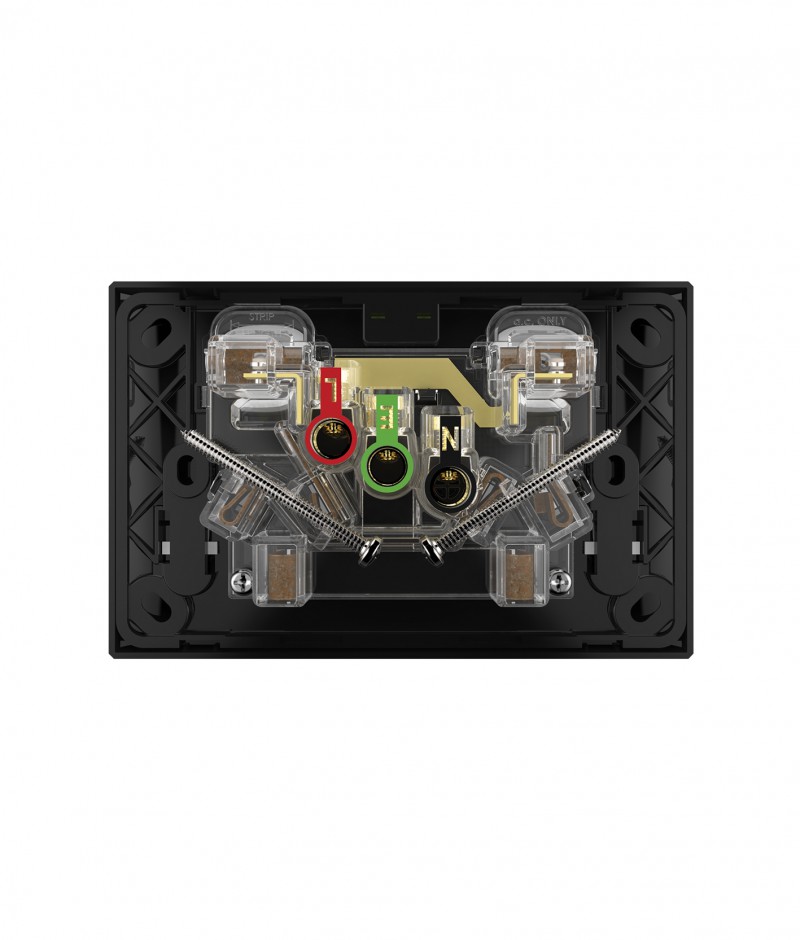

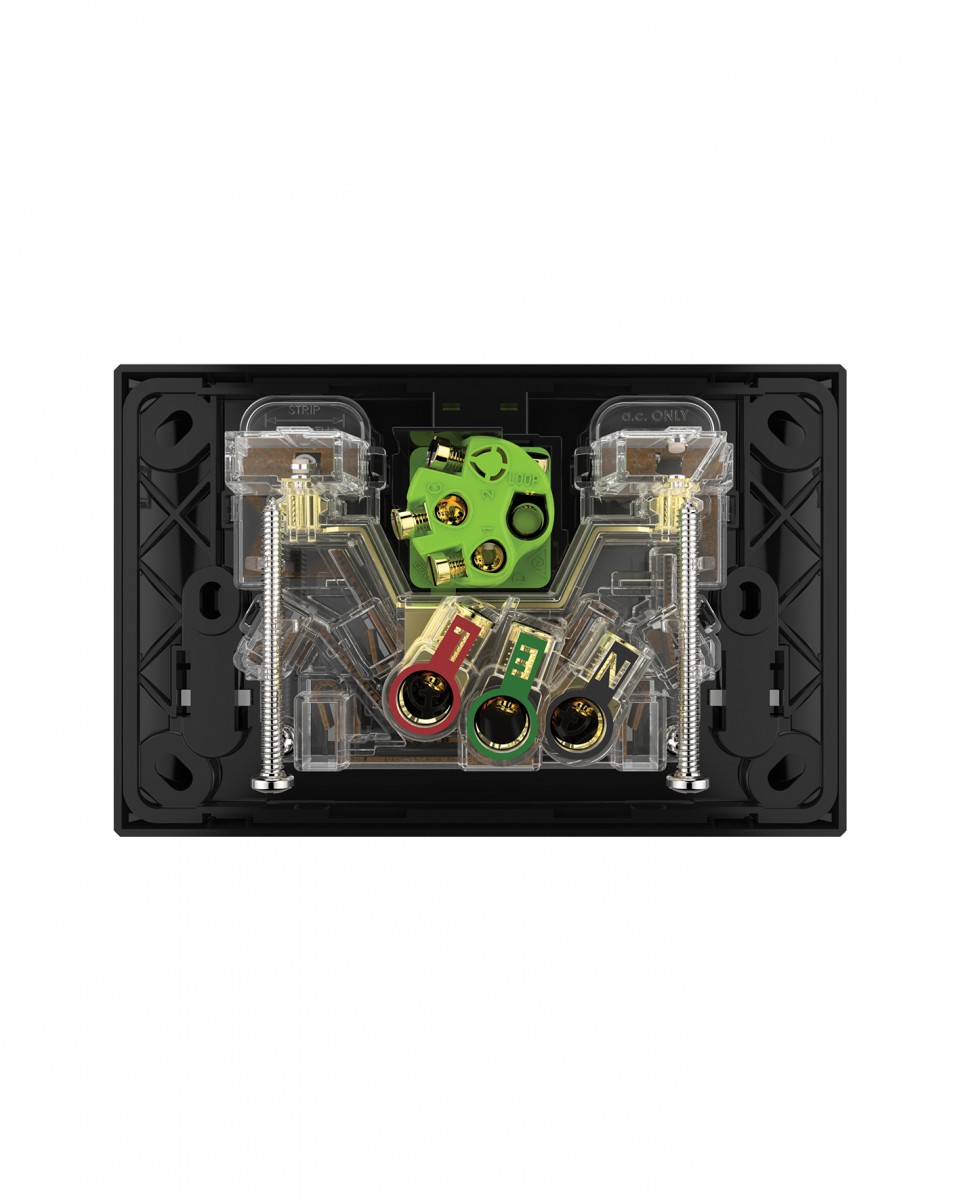

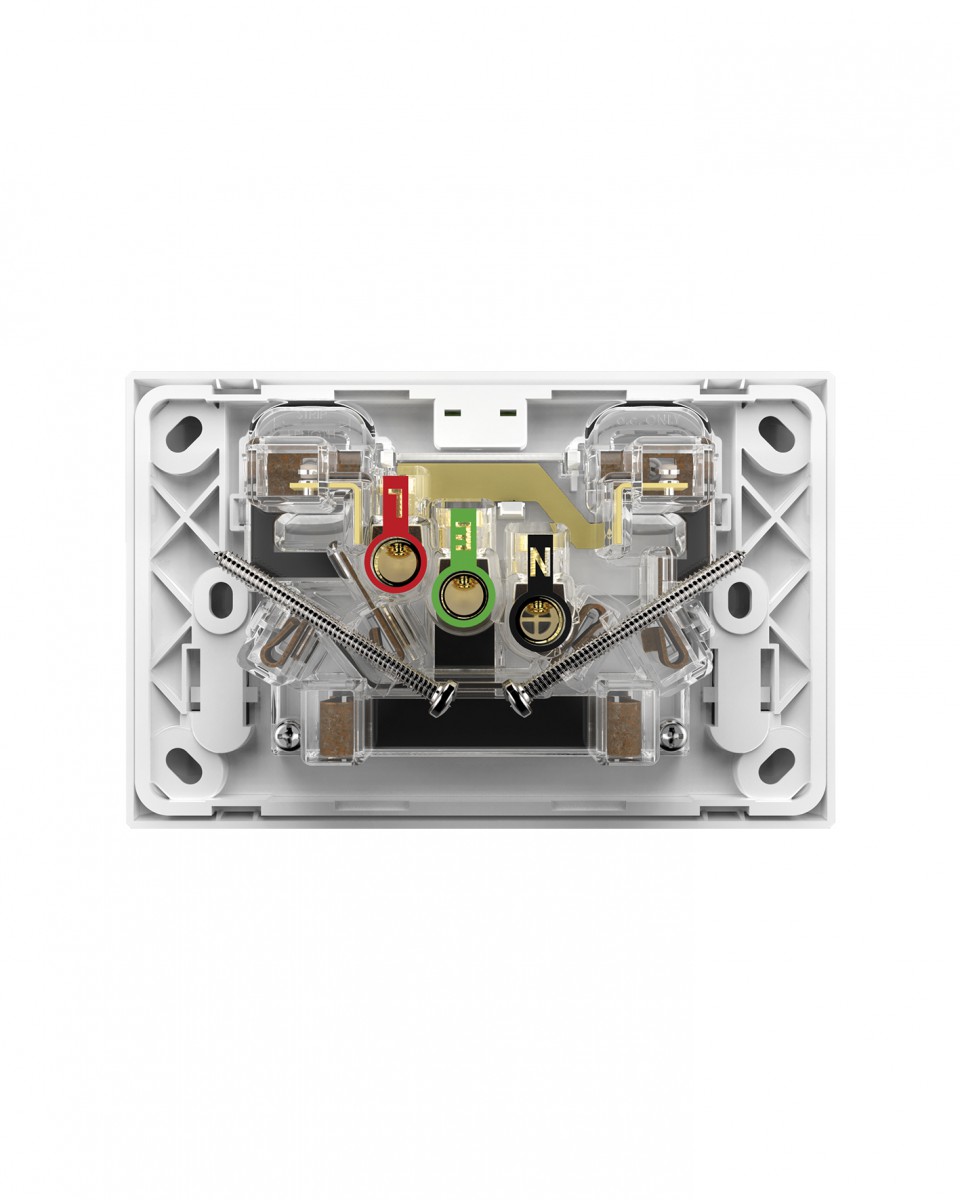

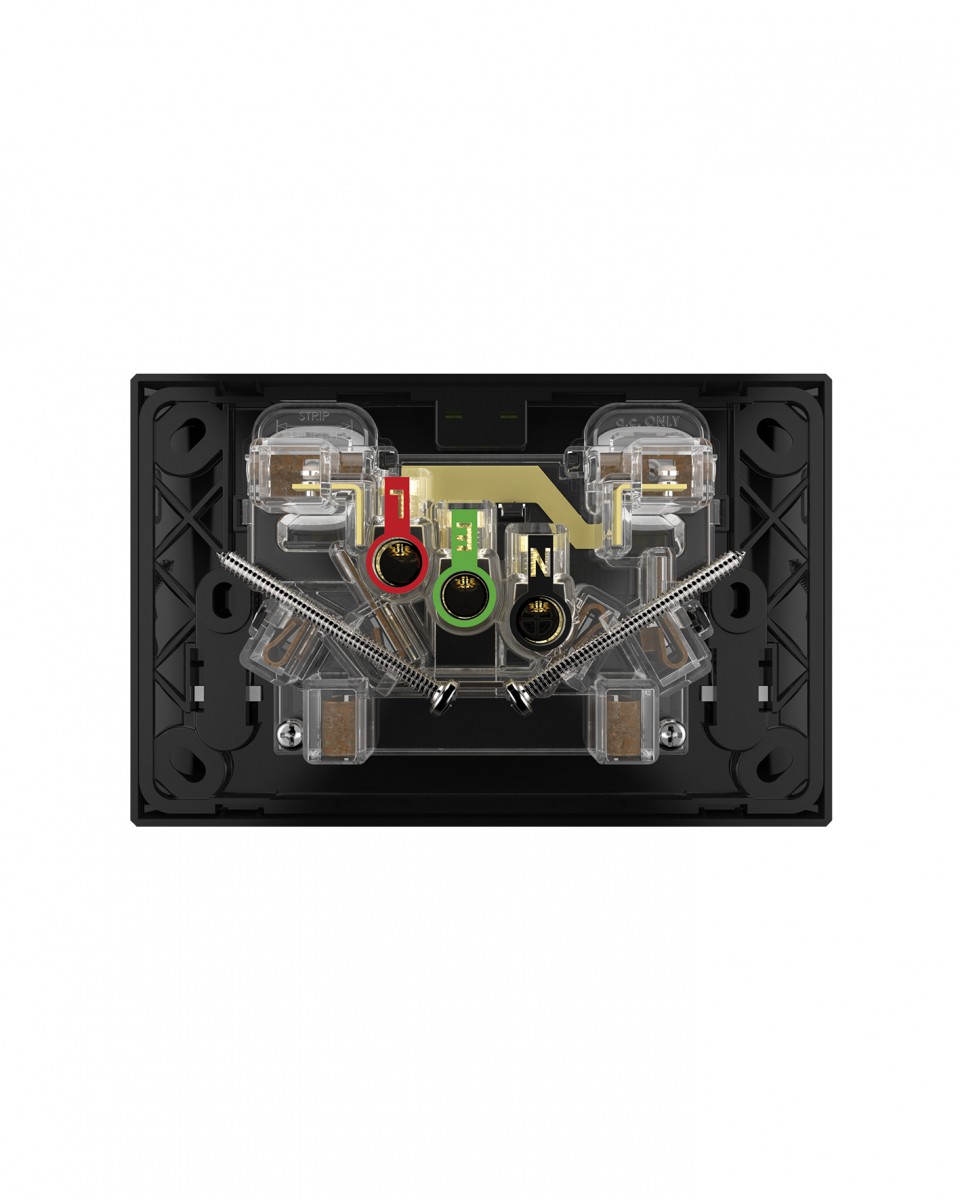

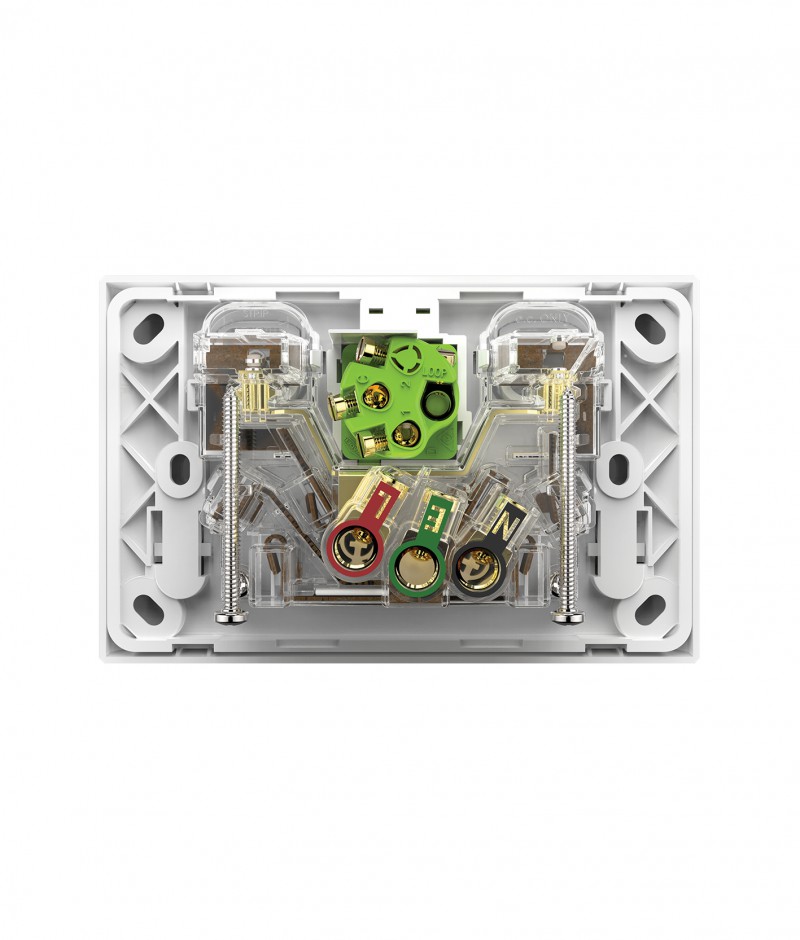

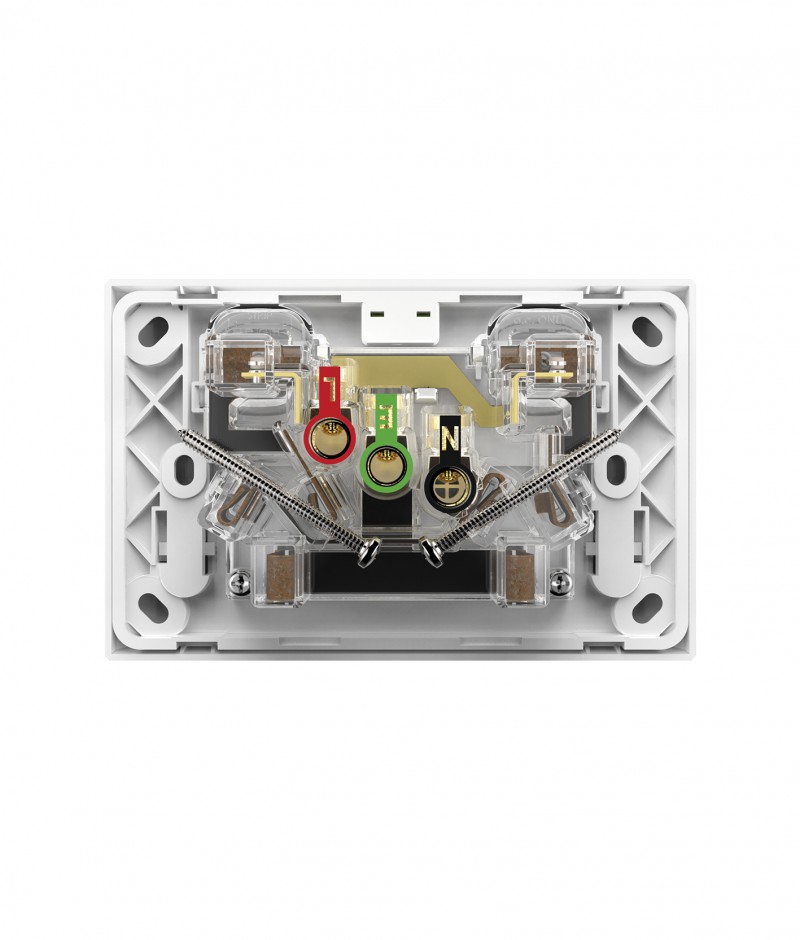

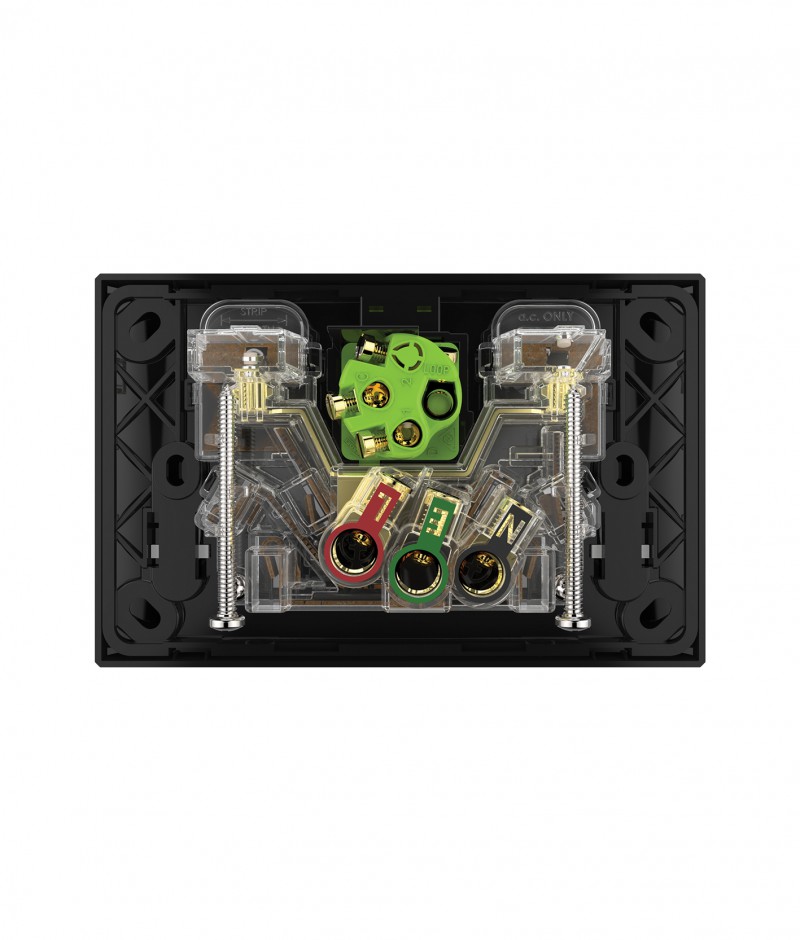

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling. Power point terminals have 6mm bore to suit 4 x 2.5mm2 cable. Switch terminals have 4.1mm suit 4 x 1.5mm2.
- Combination head screws for the socket terminals.

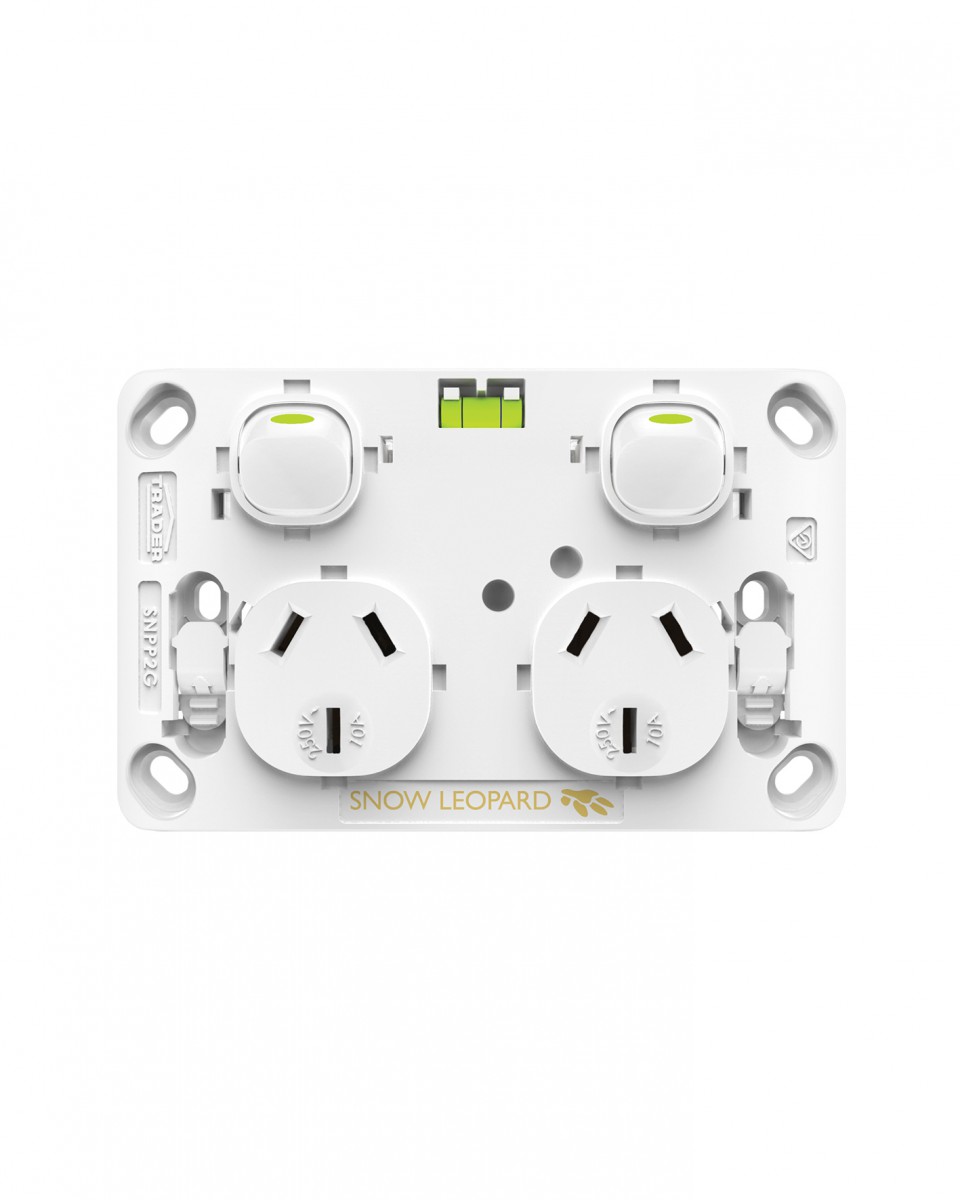

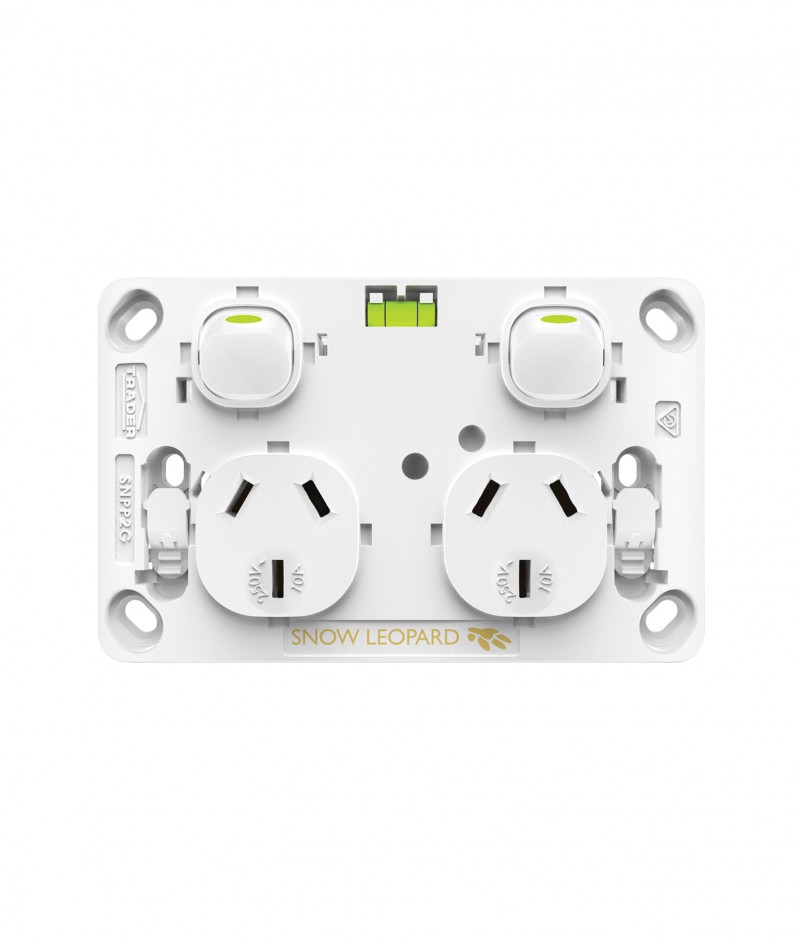

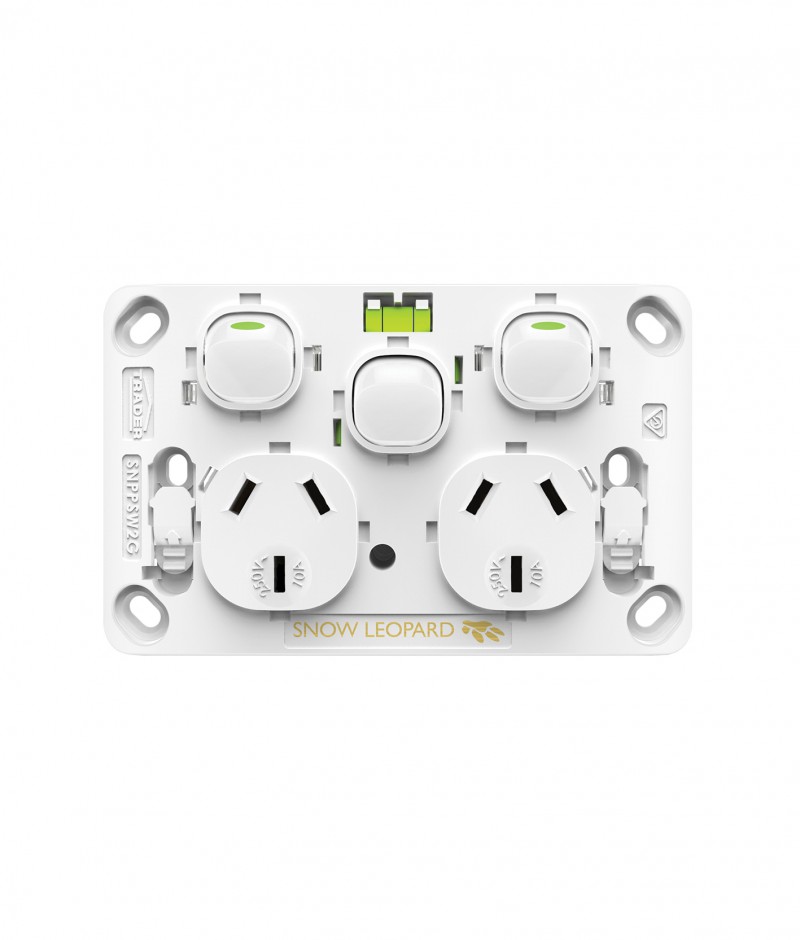

- Uses ‘Cat Flap’ screw covers for IP rating mounting screws.
- Dolly indicator colour green.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.

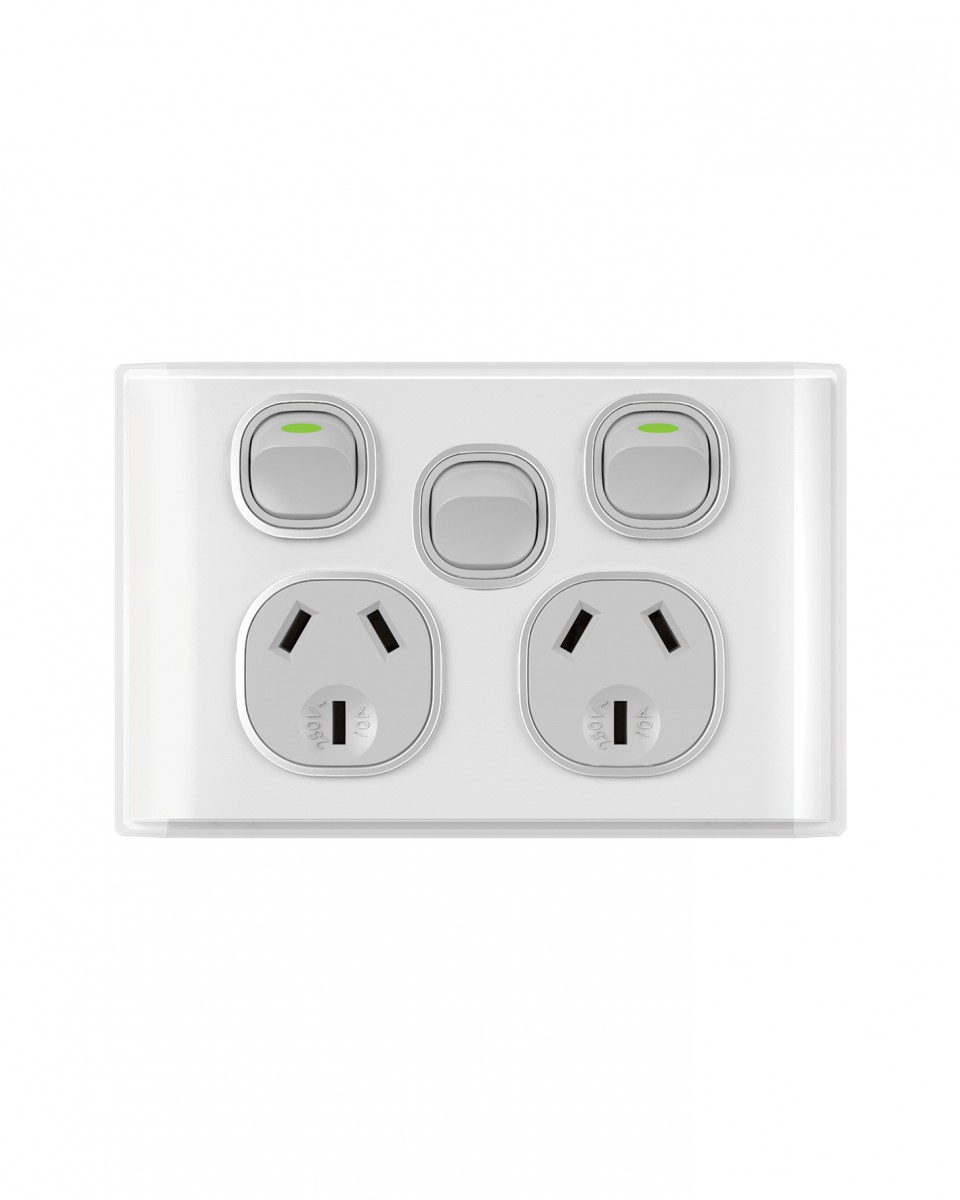

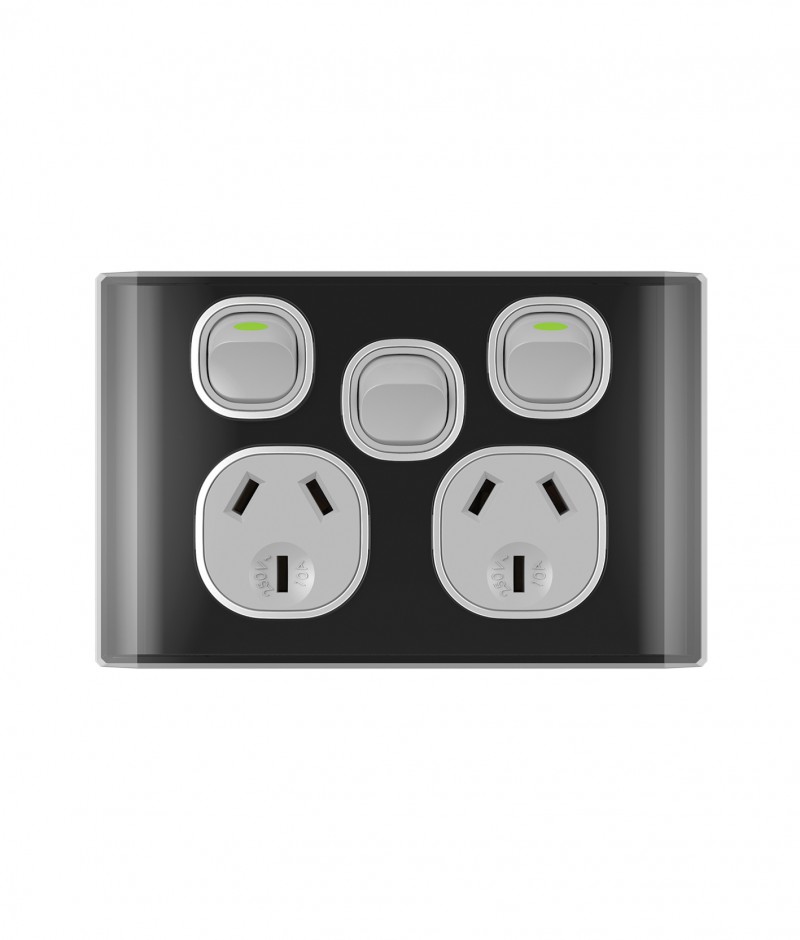

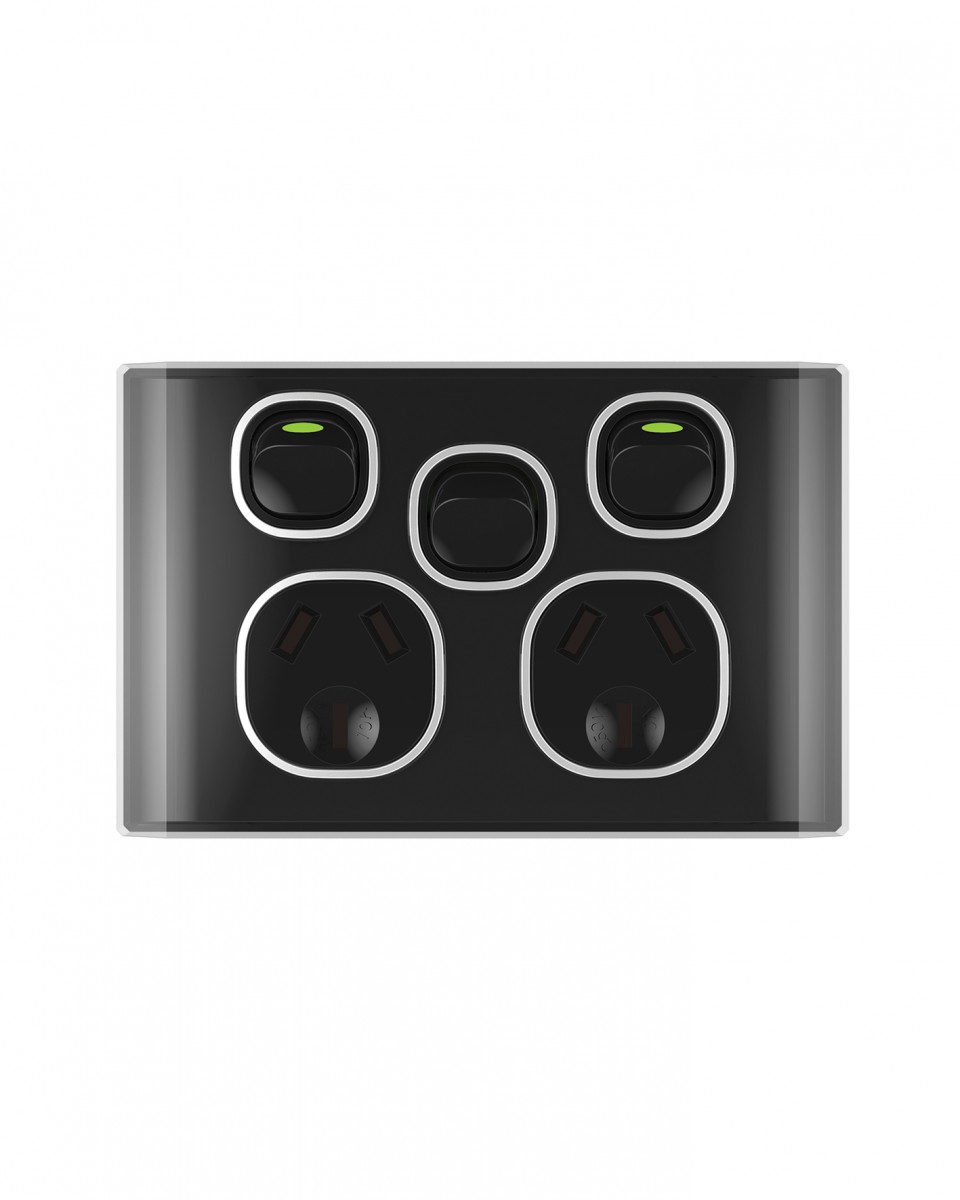

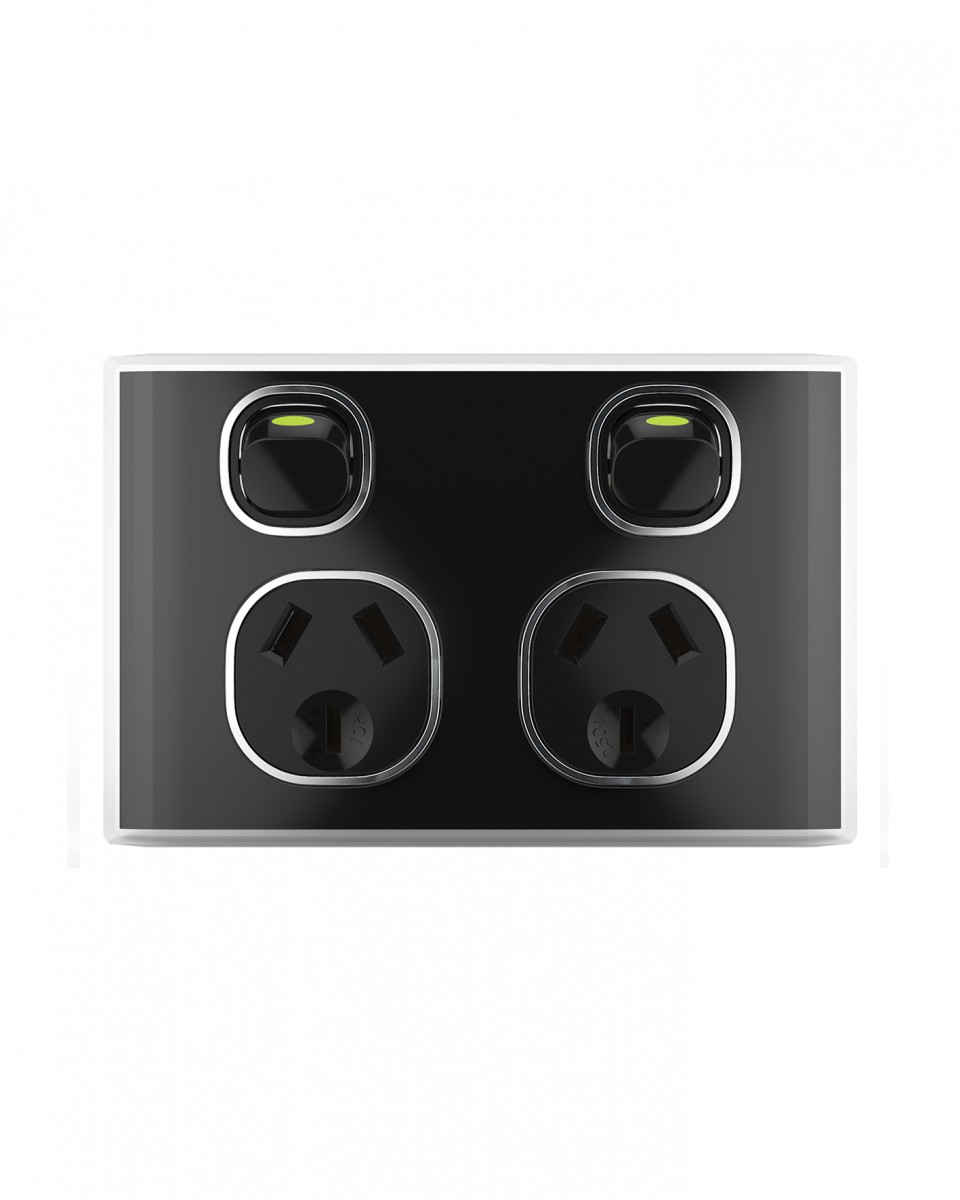

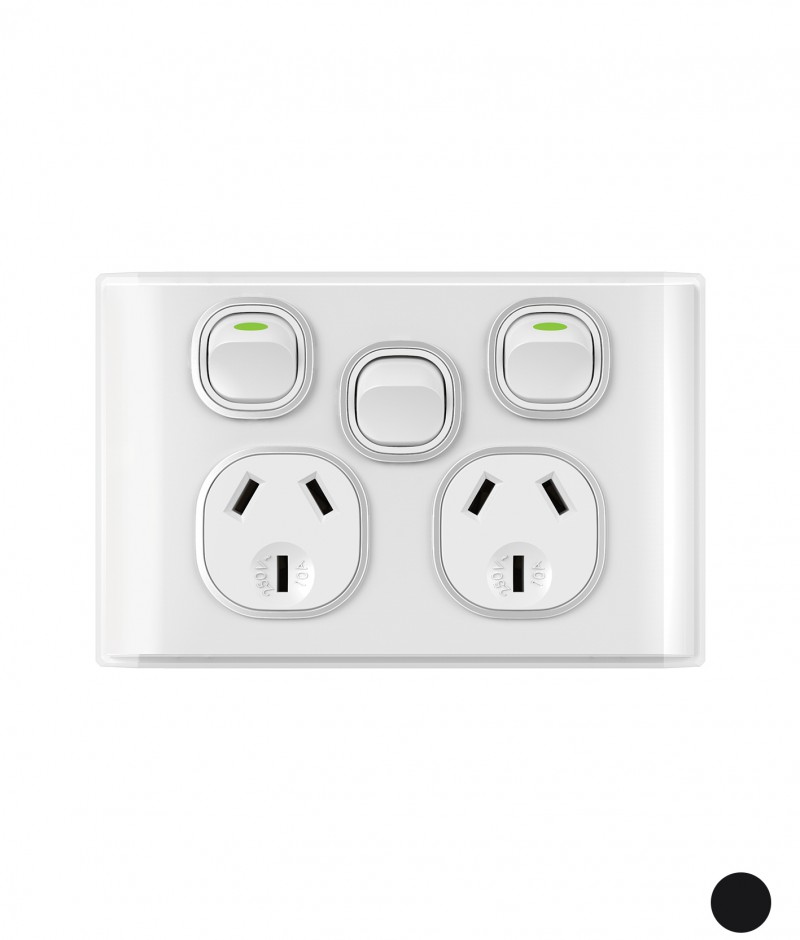

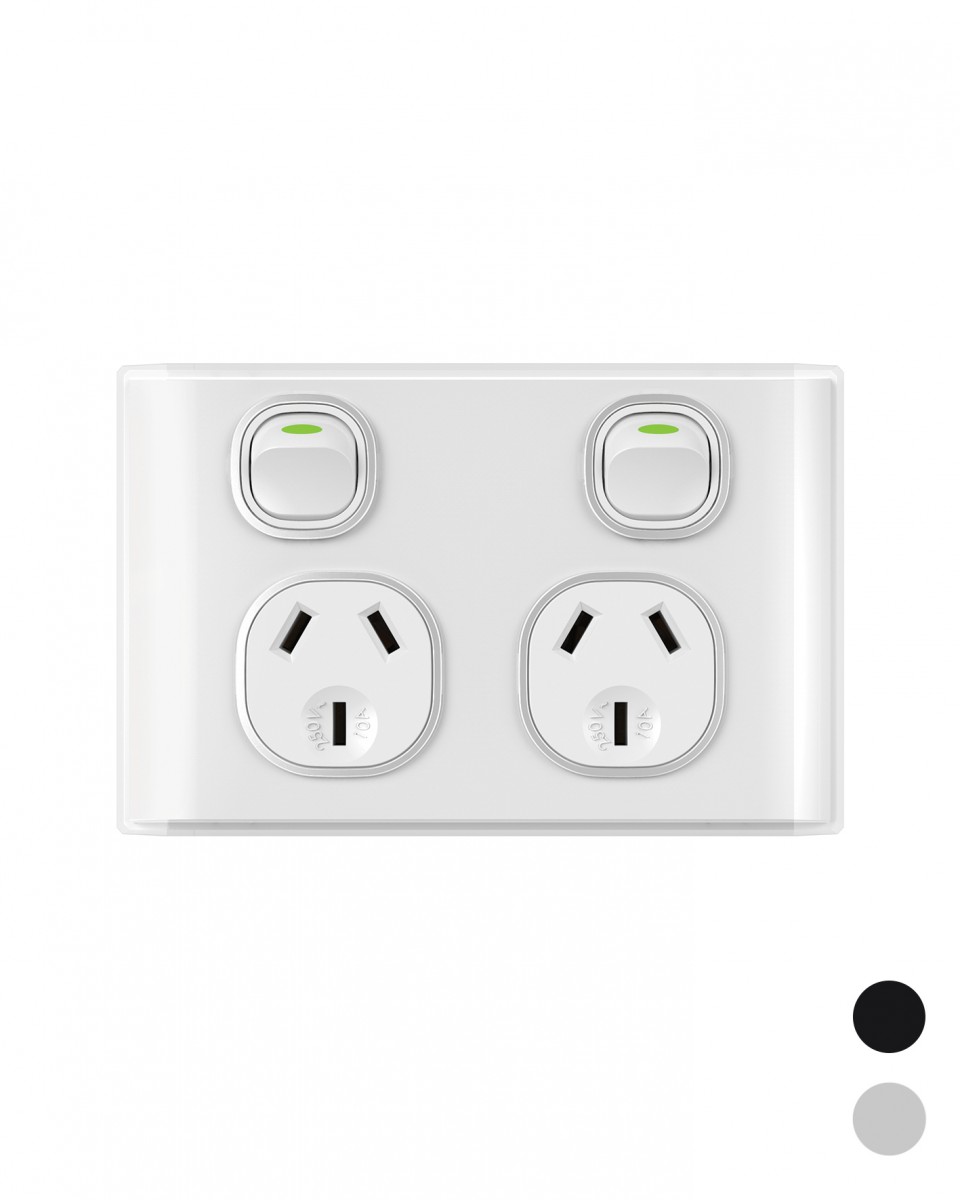

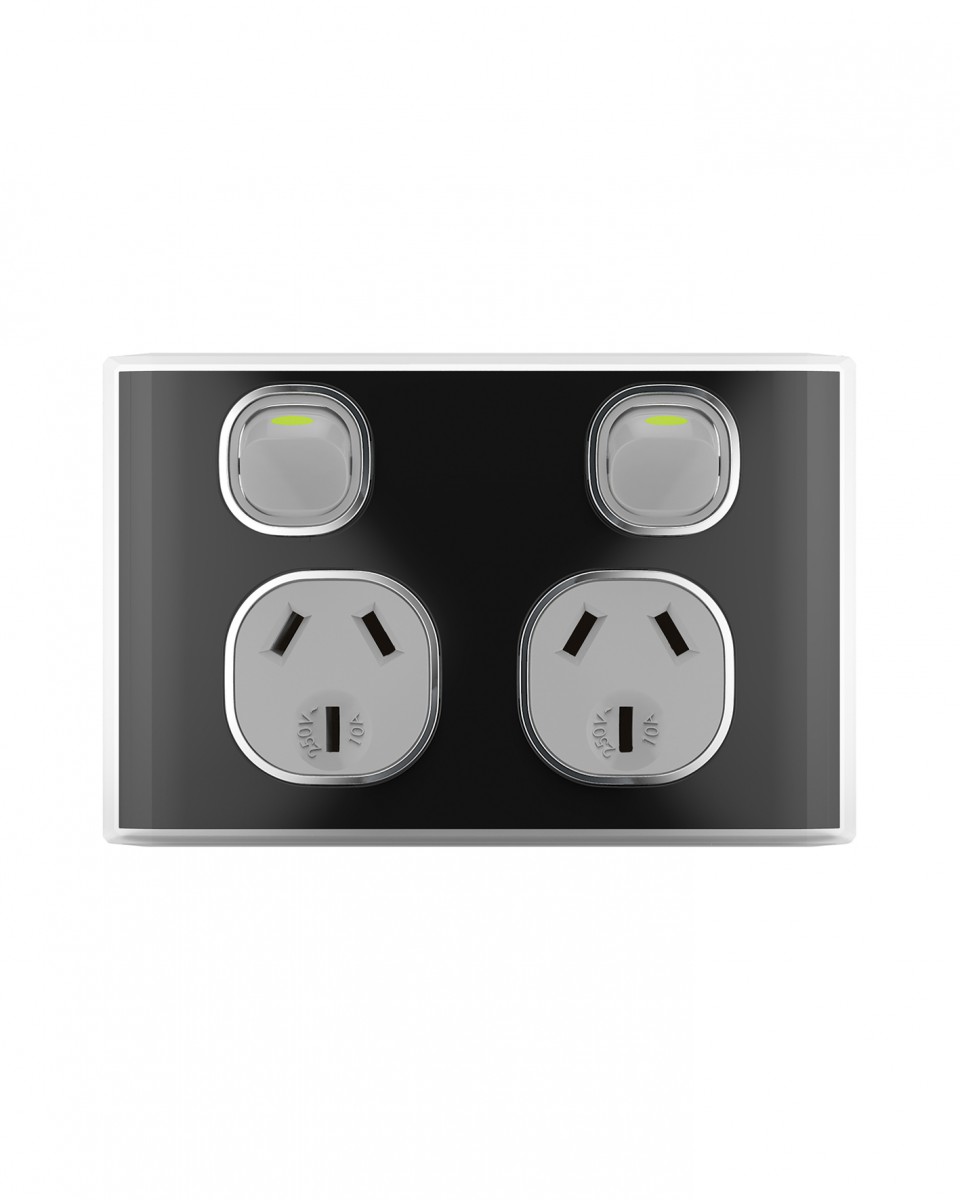

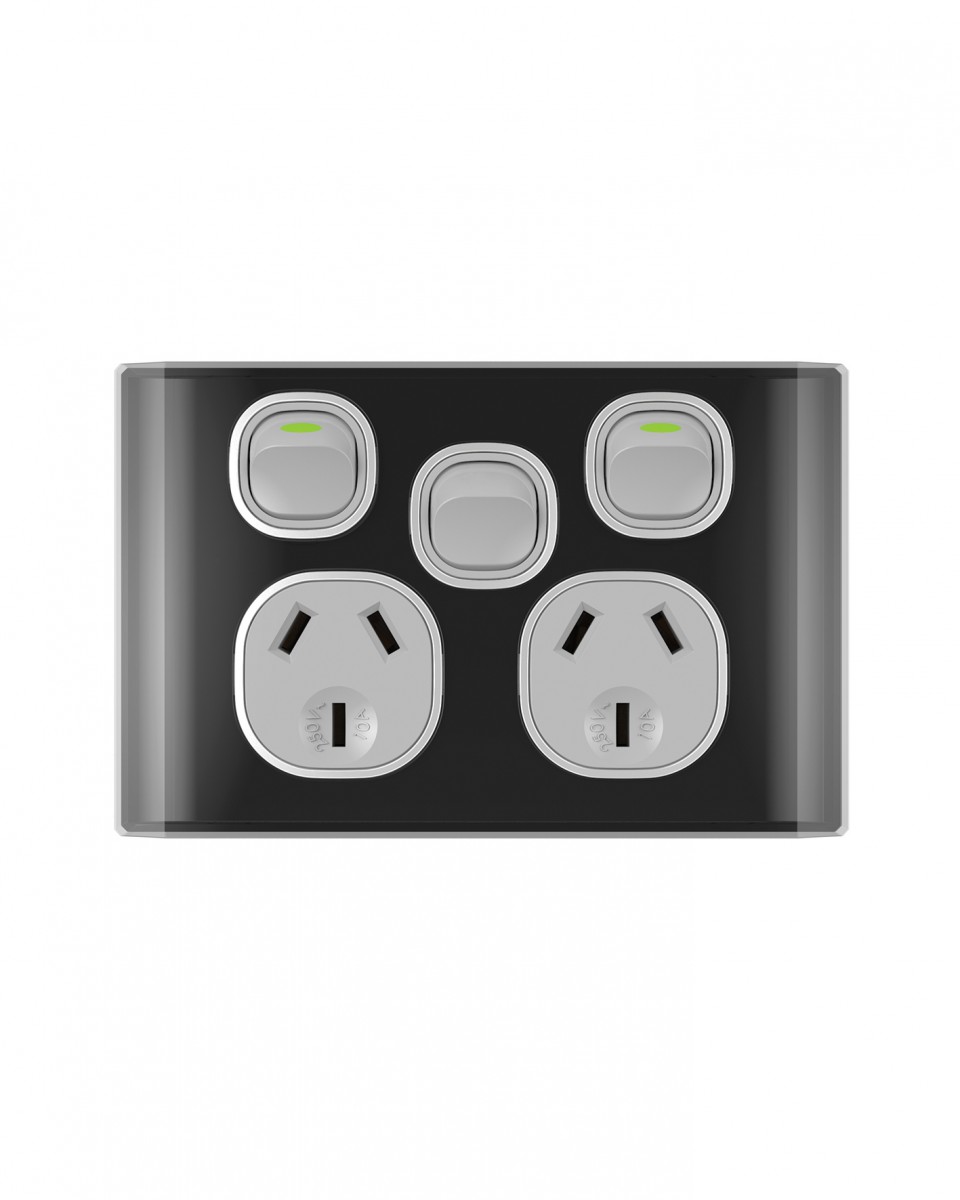

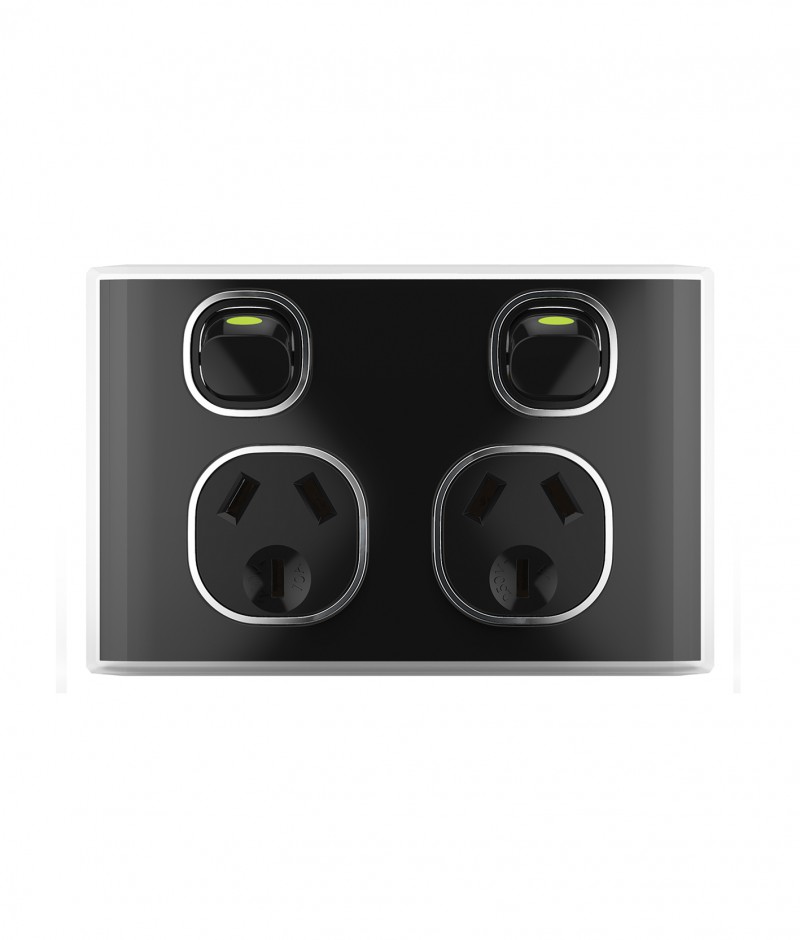

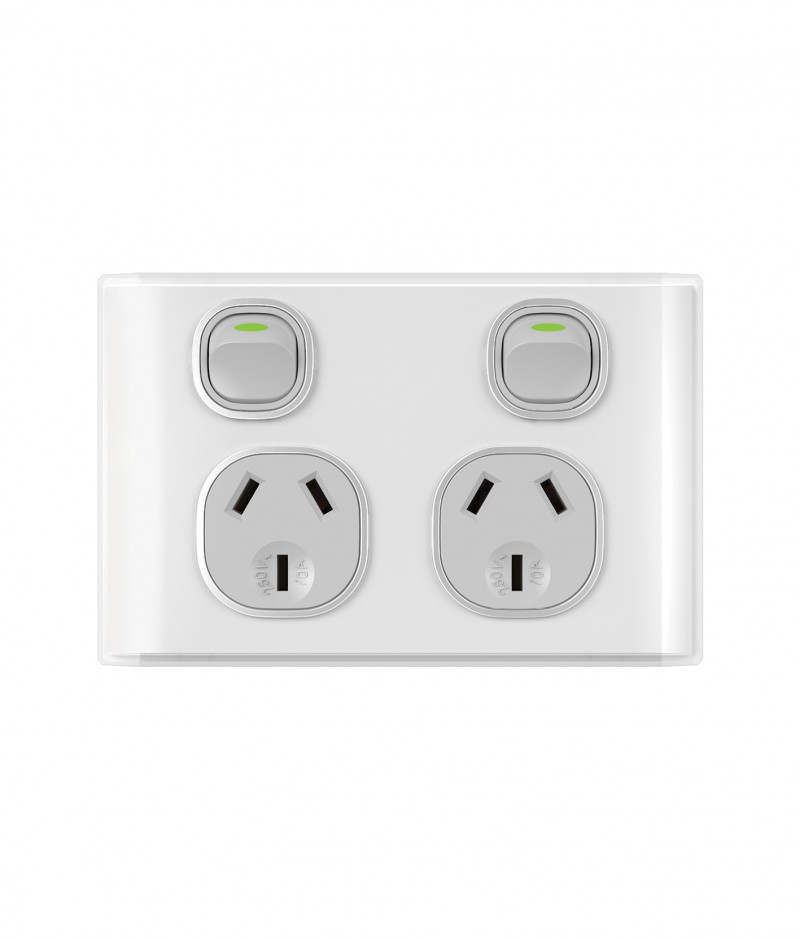

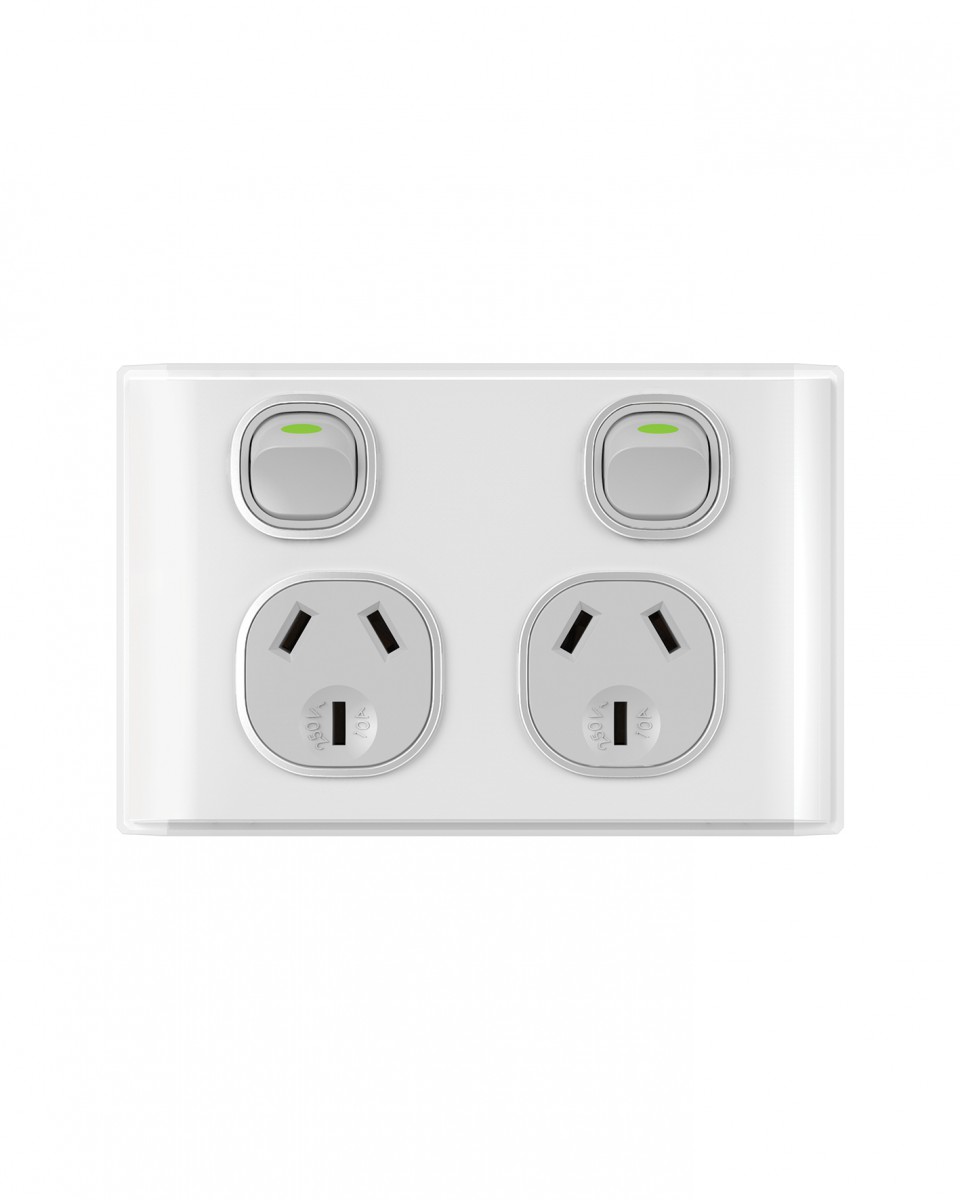

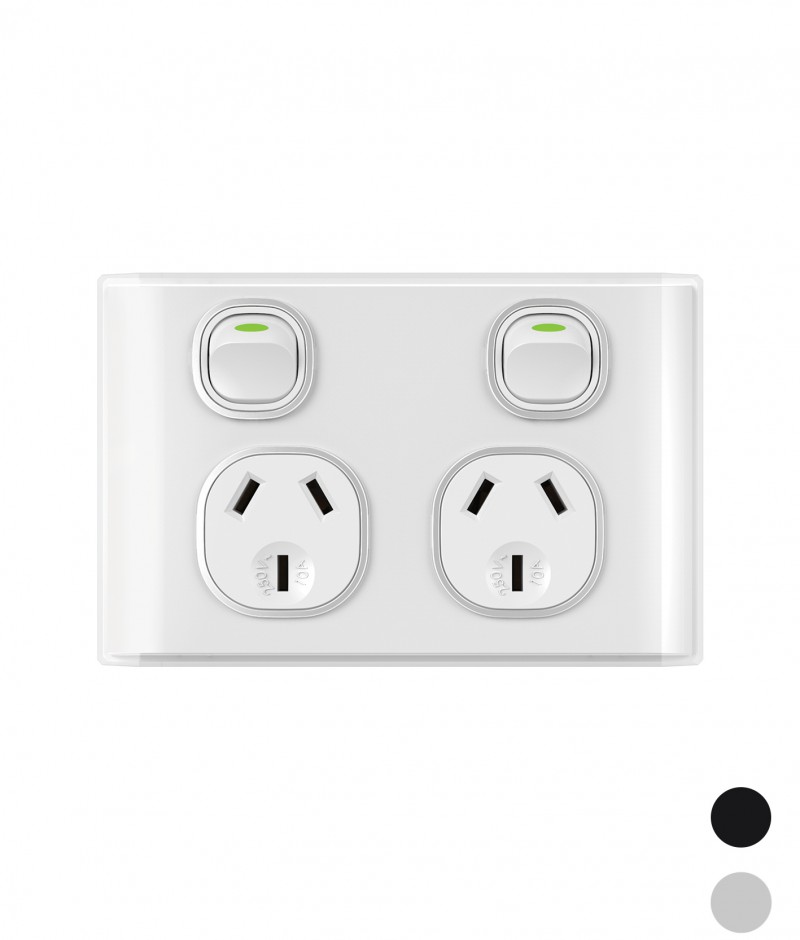

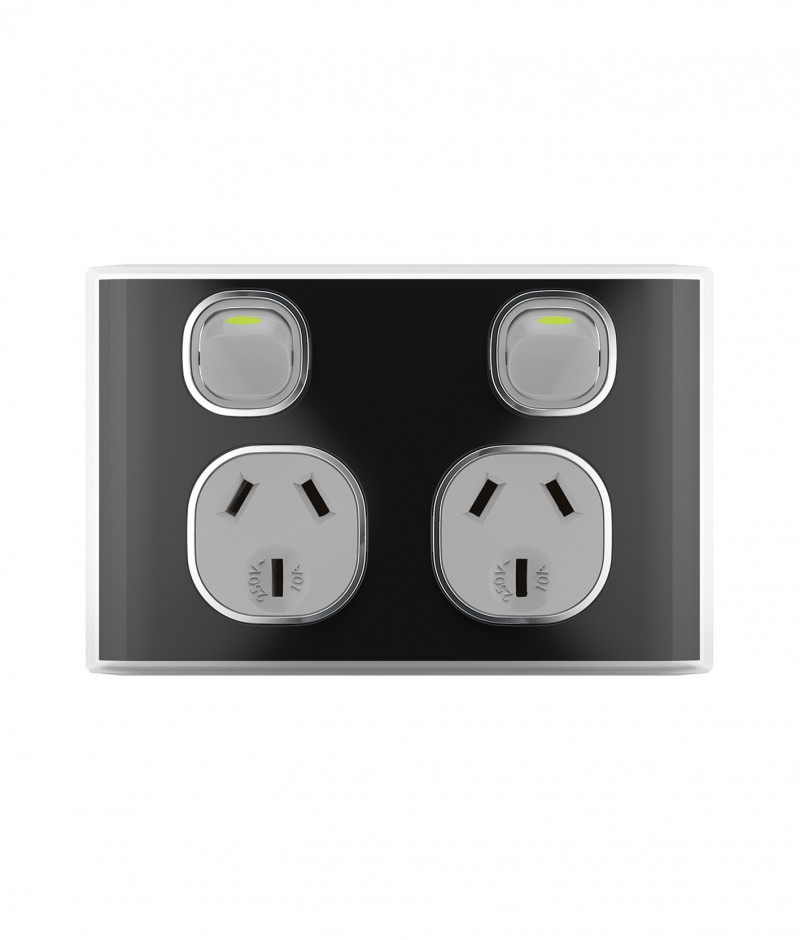

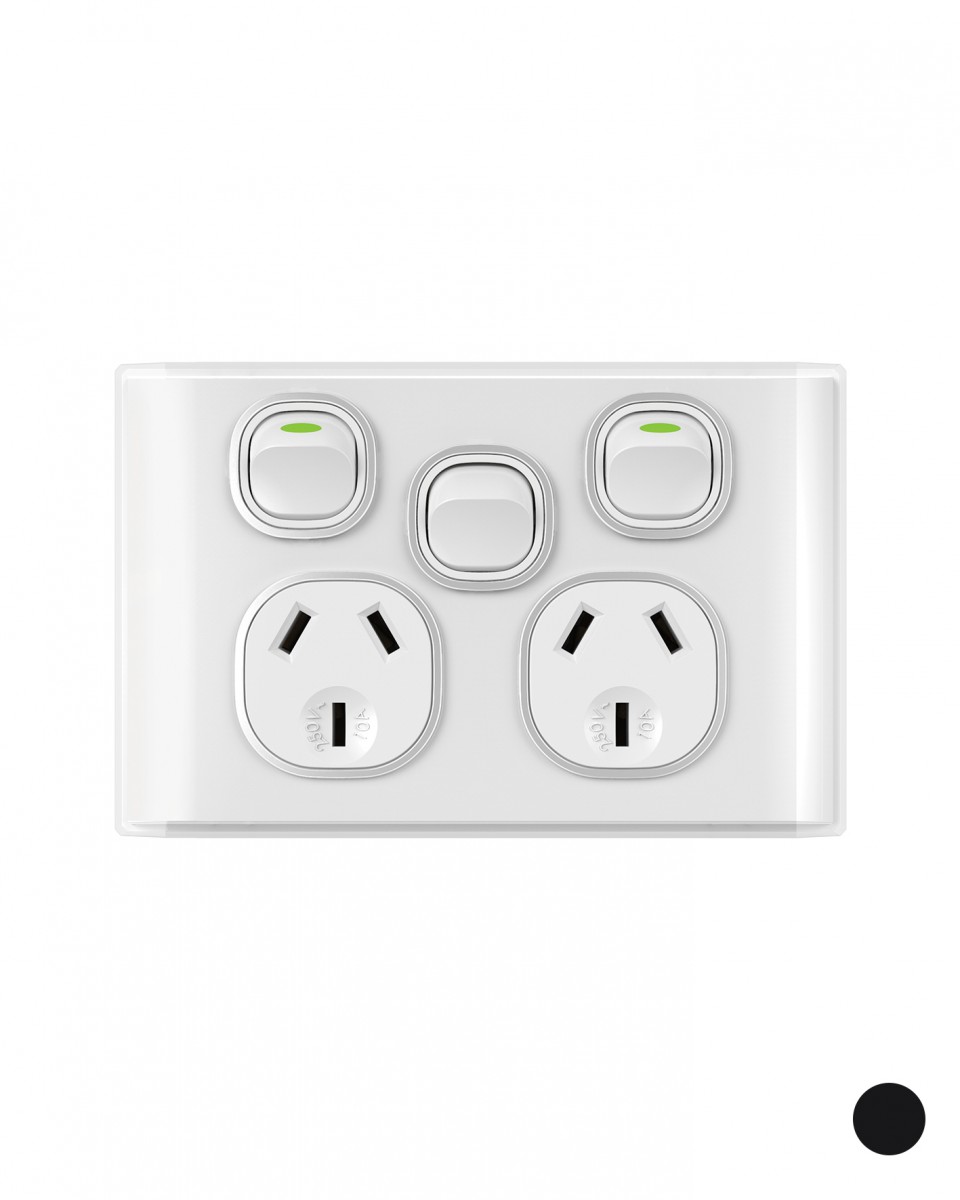

- Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability.
- 10 Year Warranty.
View Data Sheet in Downloads for complete product information.
