- Switches are rated 16AX/20A 250V~ and approved to AS/NZS60669-1.
- Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres.

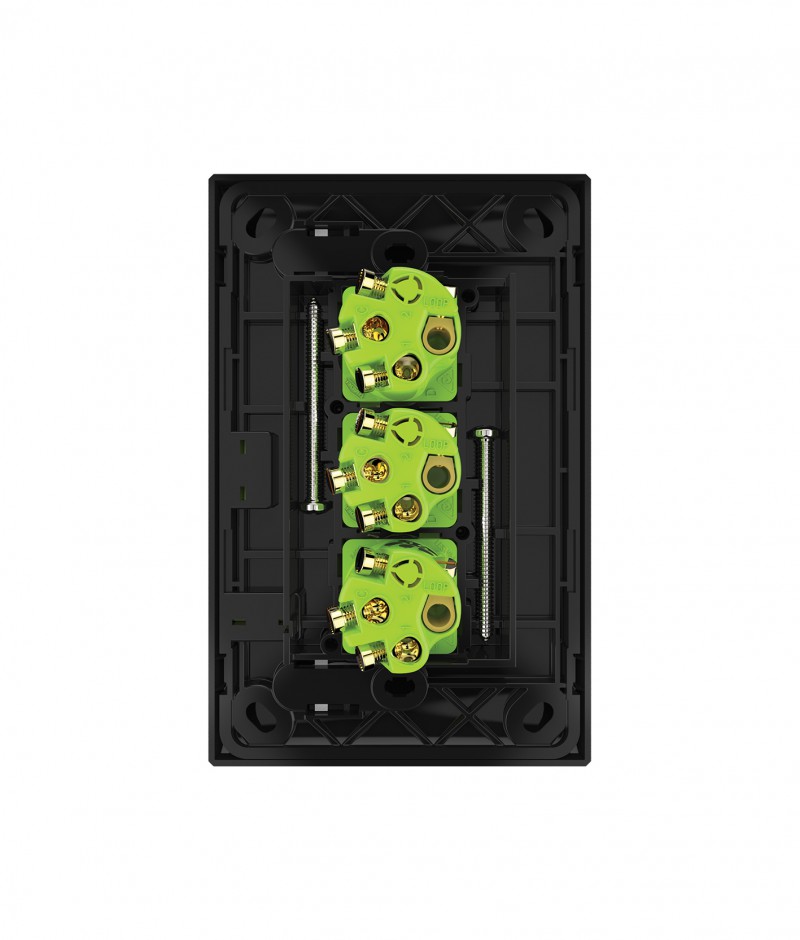

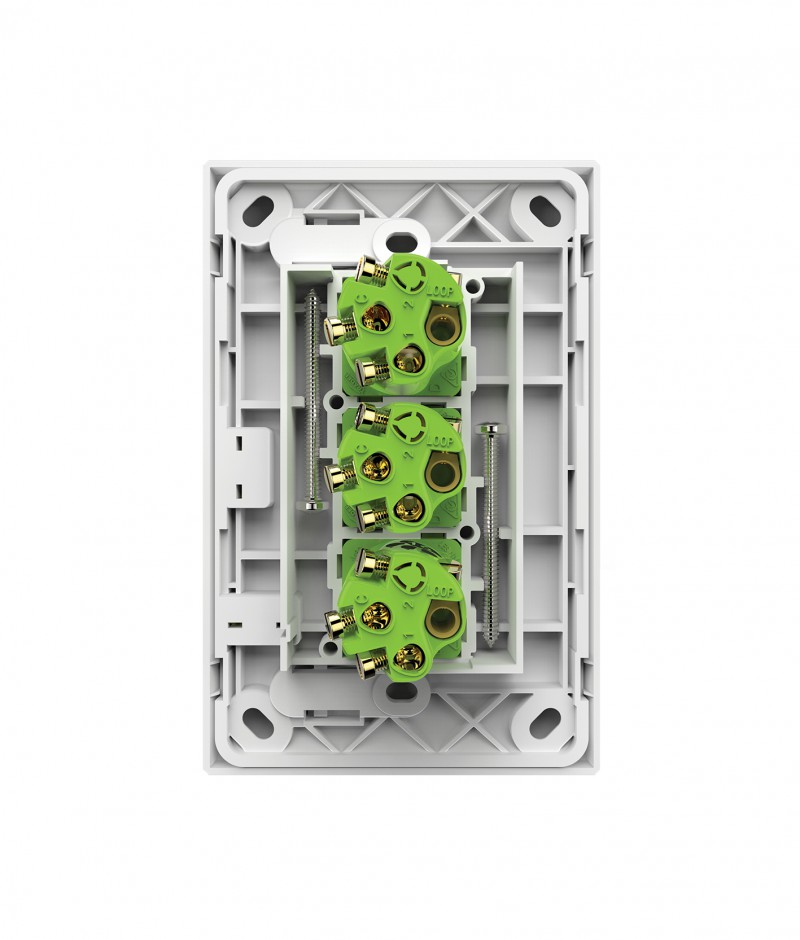

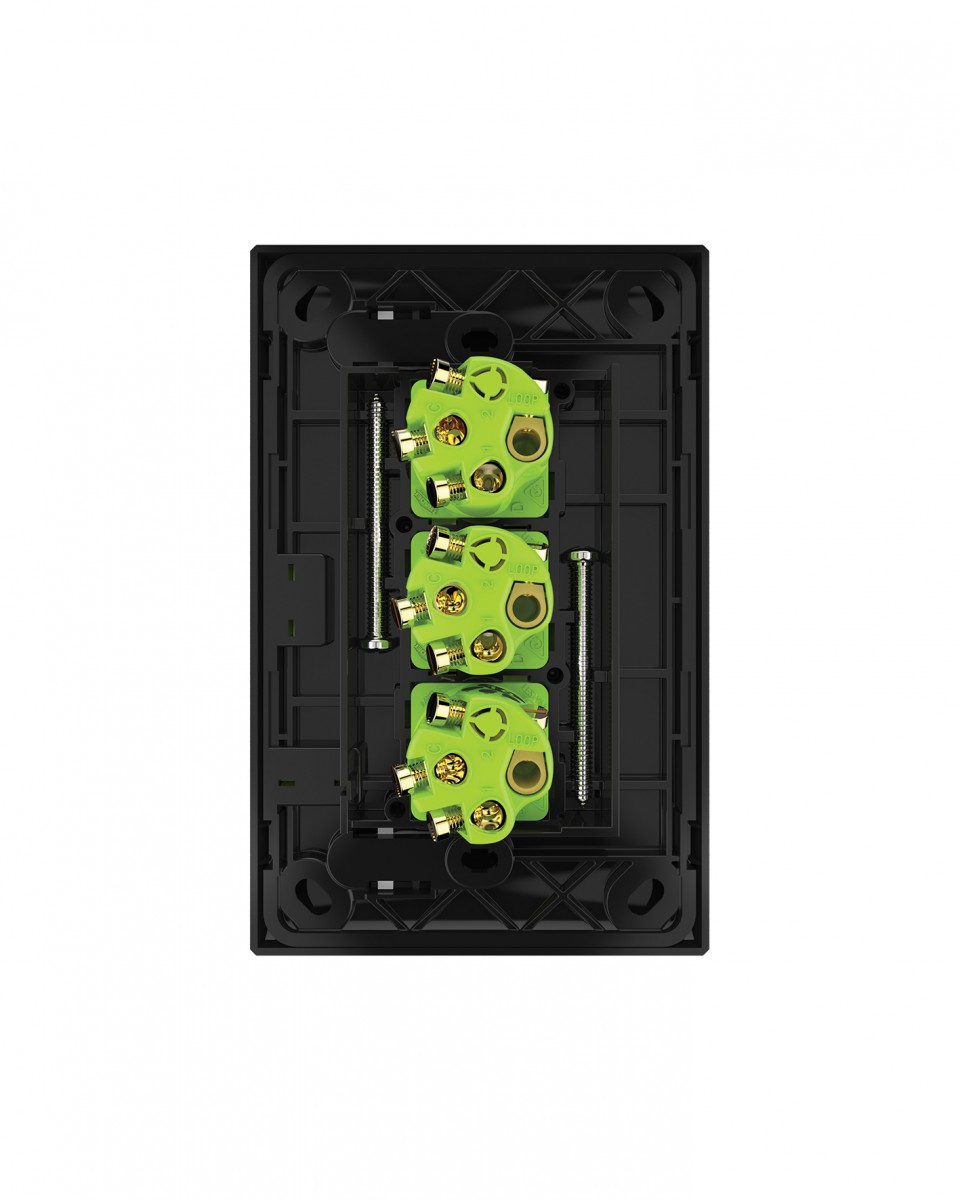

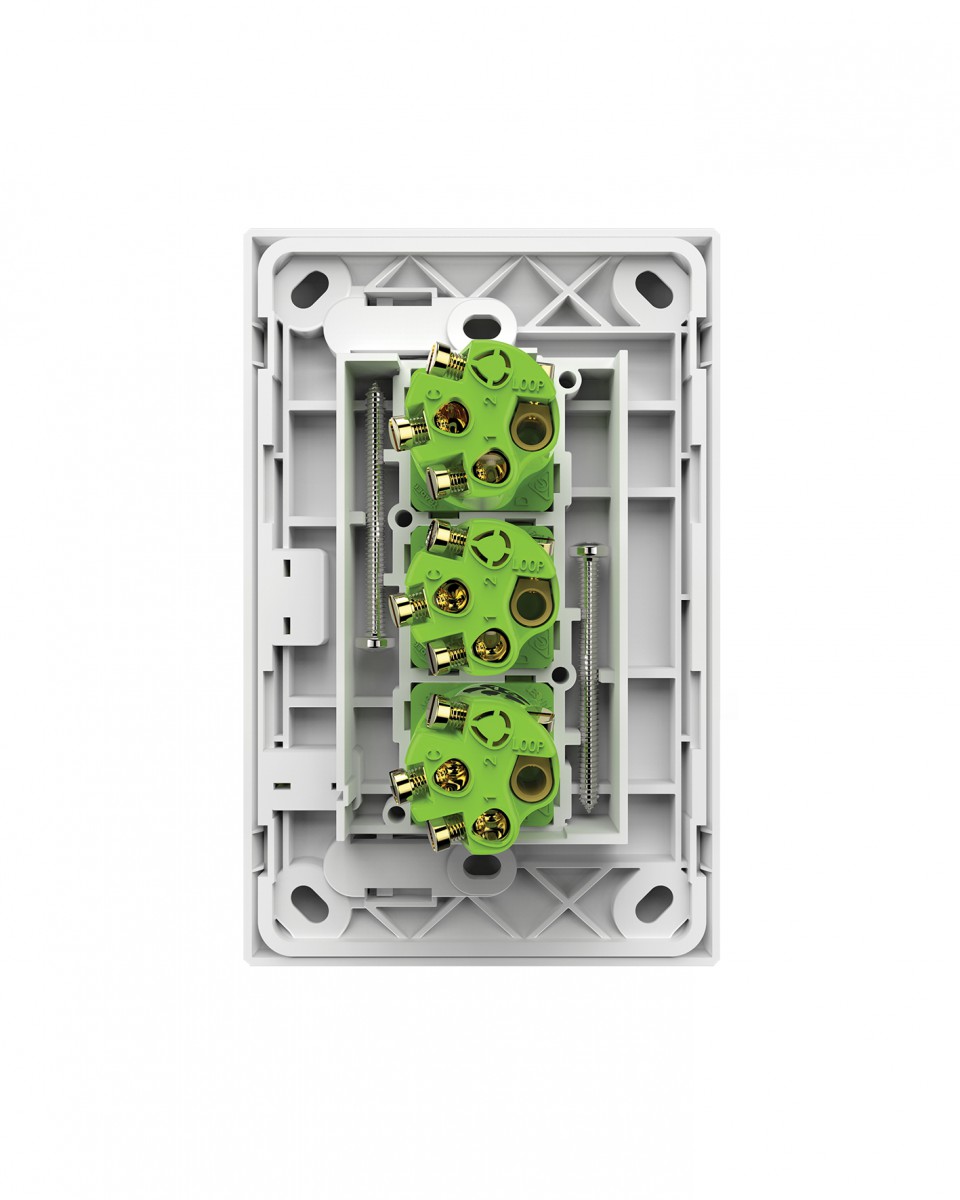

- Uses brass tunnel terminals that have the screws backed out for easier installation of cabling.
- Switches are two way with looping terminal and suit 4 x 1.5mm2 cabling with 4.1mm bore.
- Slotted head screws for the terminals.

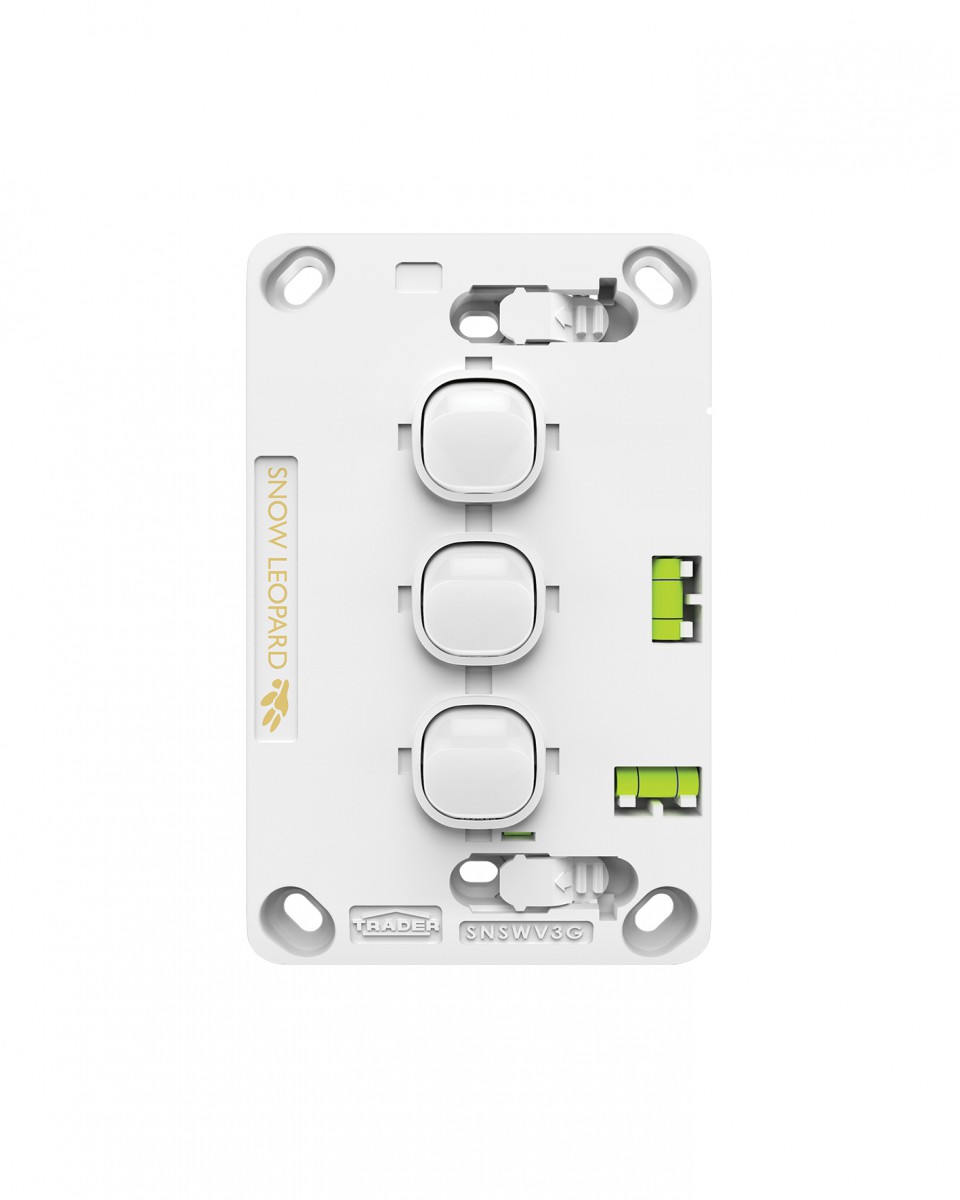

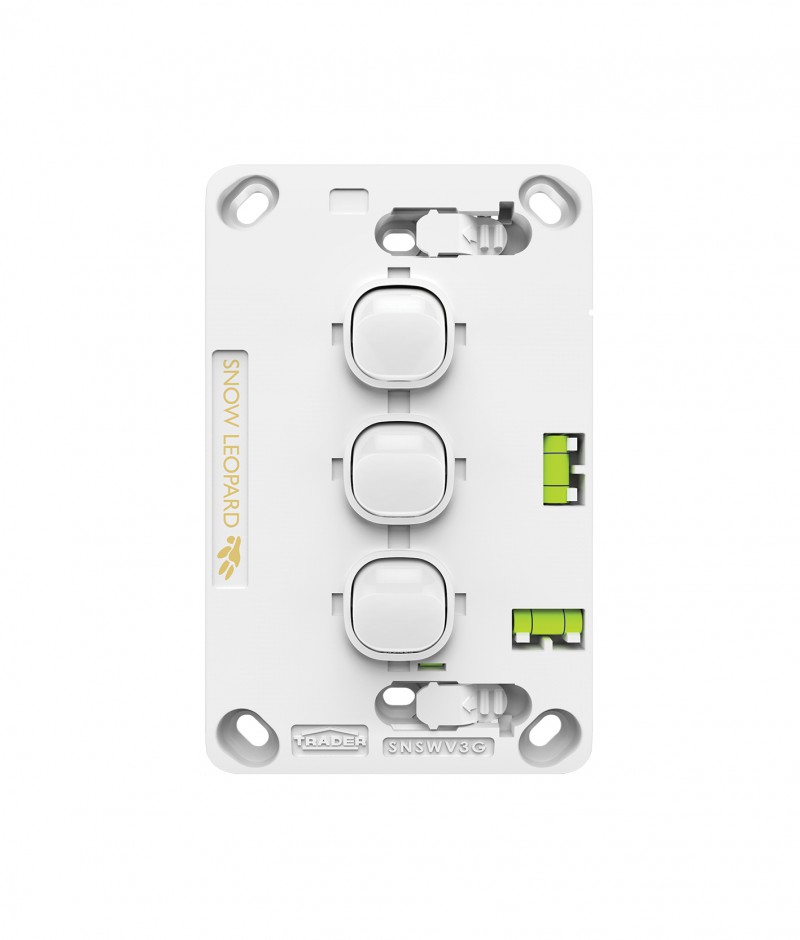

- Uses ‘Cat Flap’ screw covers for IP rating or mounting screws.
- Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow.

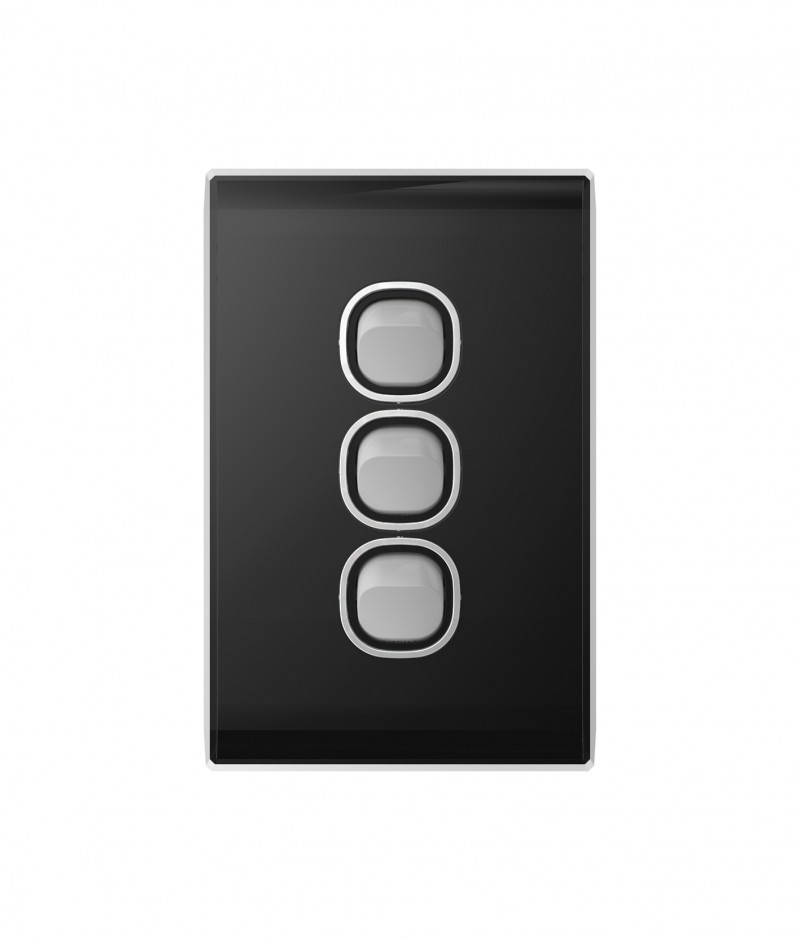

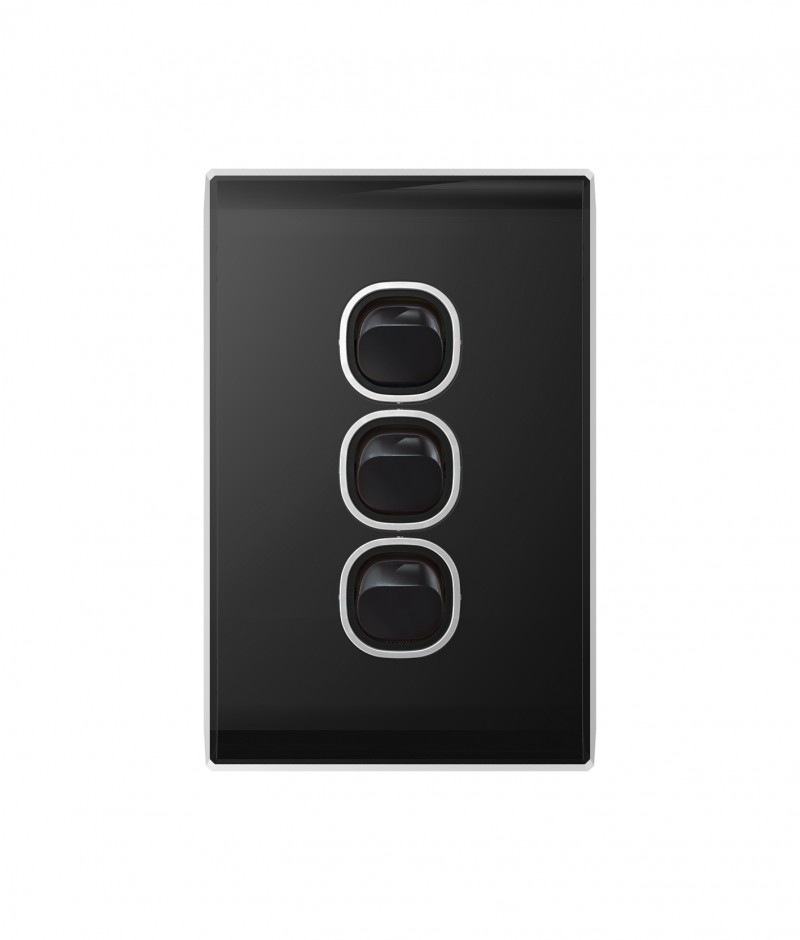

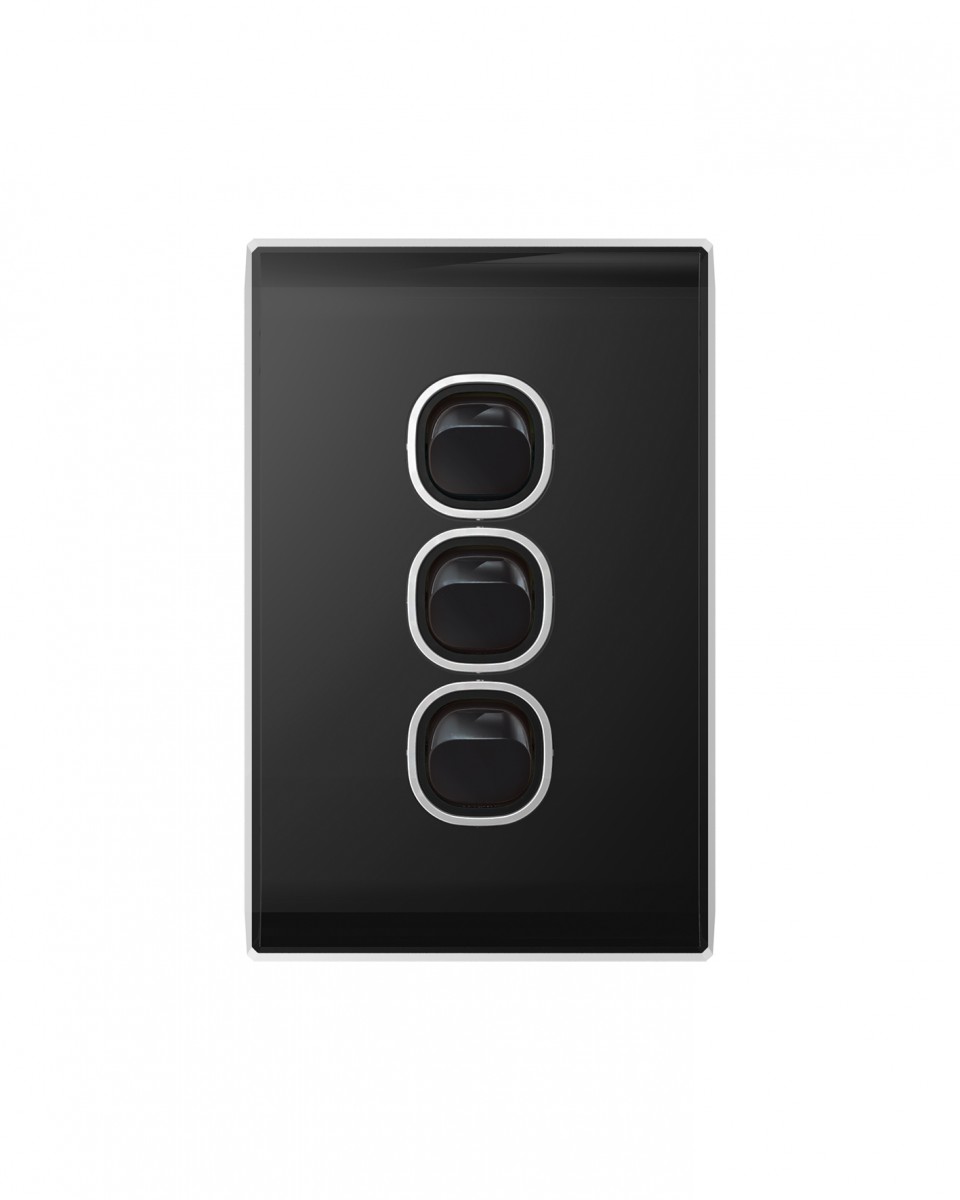

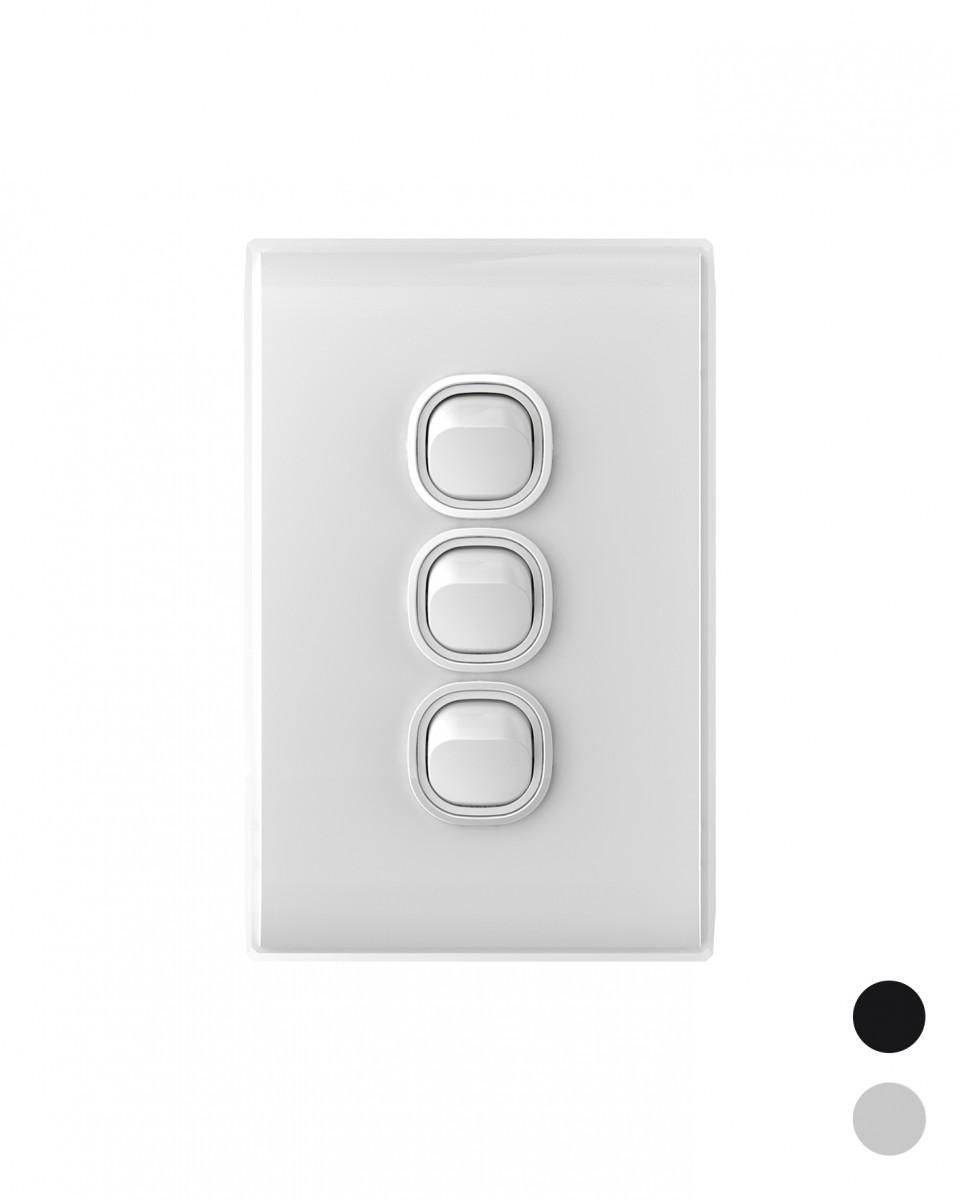

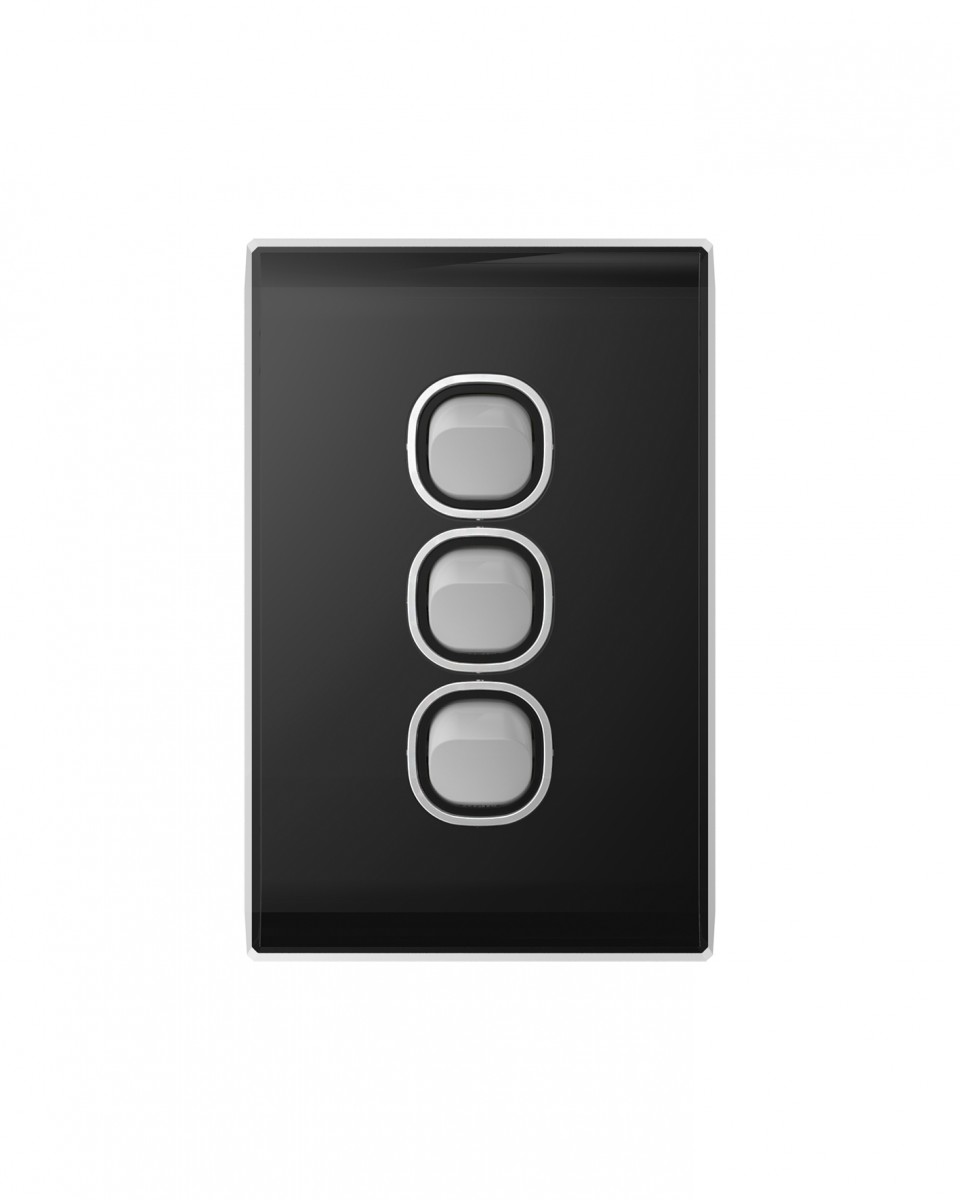

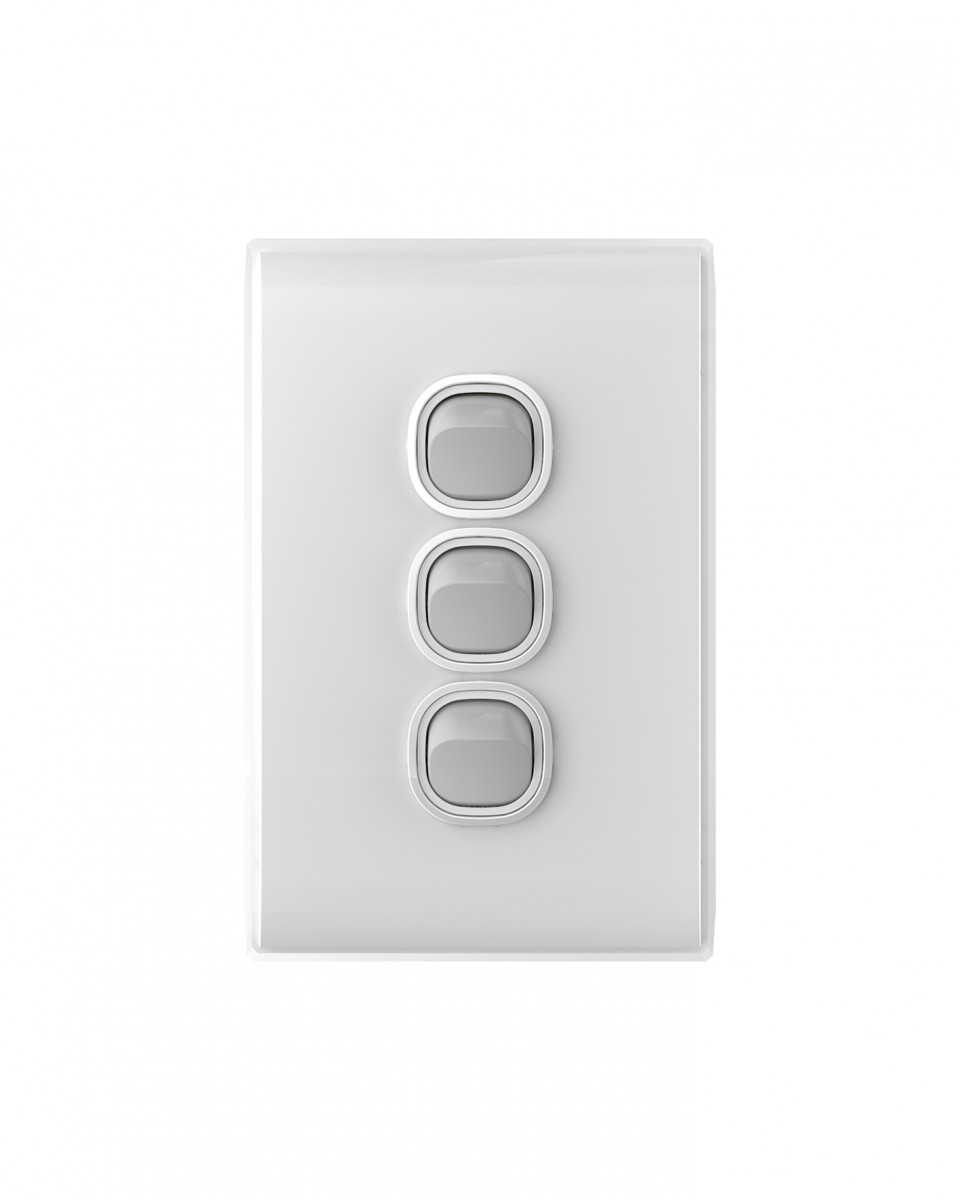

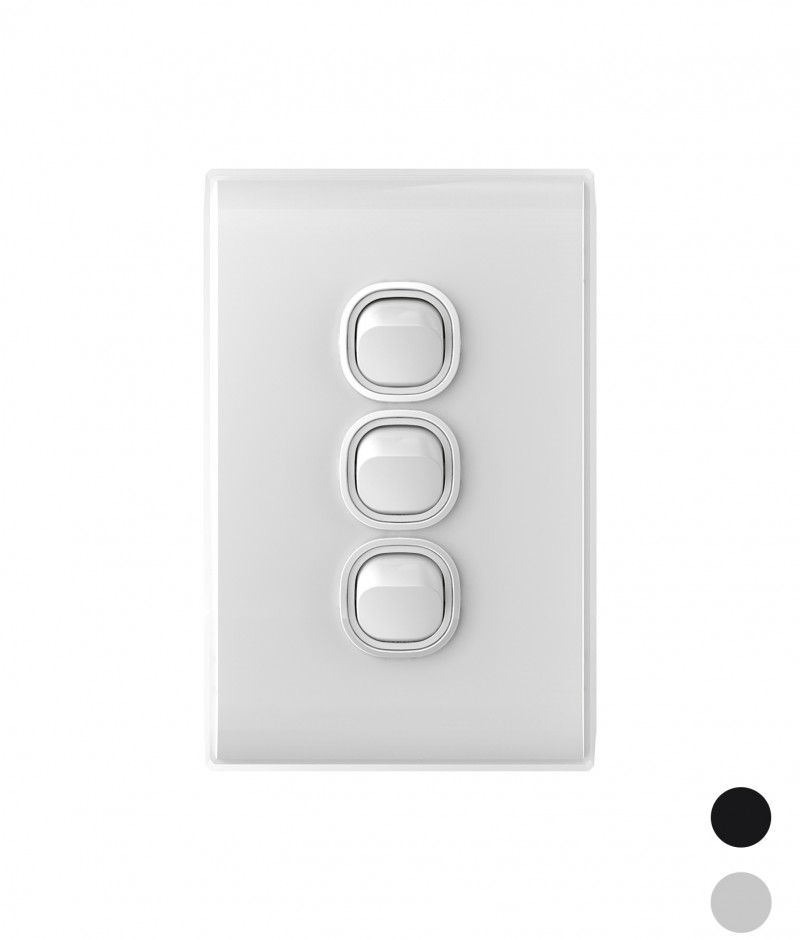

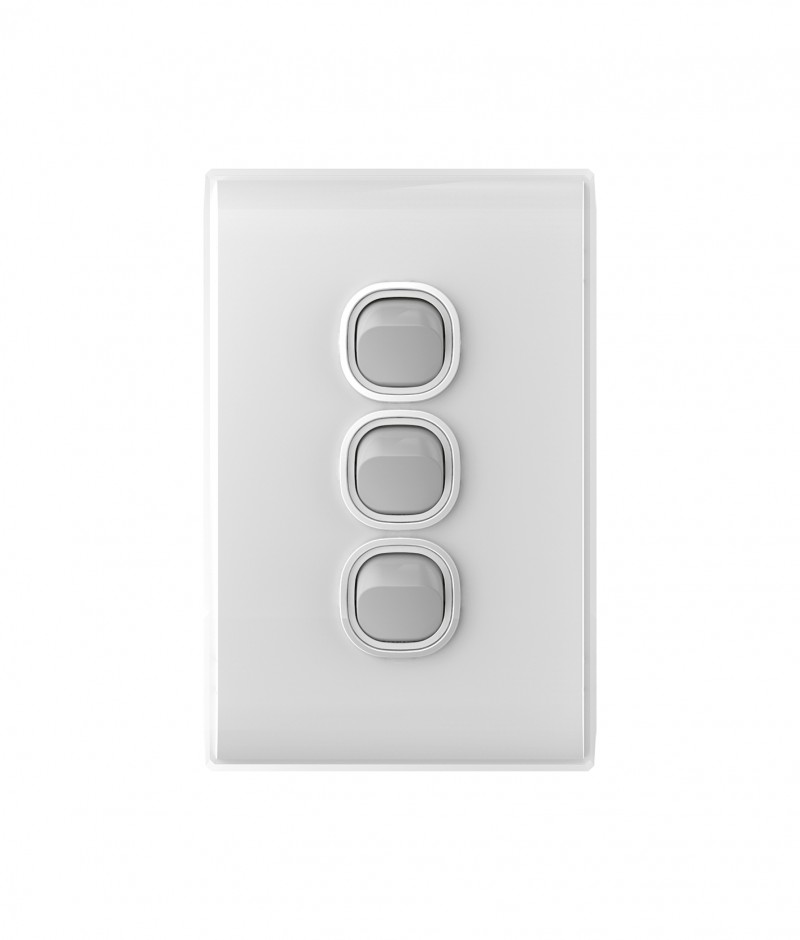

- Standard colour is white. Available in Black, White/Silver and Black/Silver - Please check availability.
- Plates suit Trader Meerkat MESWC mechs, including TV and Data; and Clipsal 30 Style* mechs and accessories.
- Horizontals are available by request.
- 10 Year Warranty.
View Data Sheet in Downloads for complete product information.
