DIN mounted socket designed for easy installation on a DIN rail.
These sockets suit 3 pin plugs for either 10A or 15A 250Vac rating and provides a reliable and secure
connection for your electrical devices.
Features:
• 3 Flat Pin
• Available in 10A or 15A options
• Auto switched double pole
Neon Indication
To provide indication that supply is present when plugs are inserted, all products are supplied with a neon
indication.
Safety Shutters
To prevent accidental insertion into live contacts all WOSOAUDP series DIN Socket Outlets are
manufactured with safety shutters.
Double Pole Auto Switched
The Din Socket Outlets have double pole construction which incorporates auto switching across active
and neutral contacts which makes them versatile for applications such as work sites in temporary boards
and portable generators.

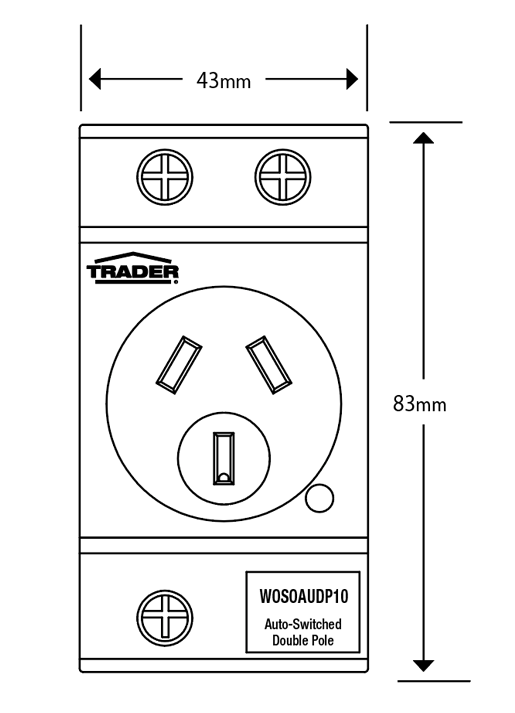

Connection
Installation and connection have been designed so that the active terminal is loaded from the bottom
position in line with other MCB and busbar active terminations and the screw positions are front mounted
in a similar layout for time saving front access (see images below). This reduces the need to unclip the
product and wire it from the rear as other in the market must be done. The top positioned Neutral &
Earth connections place them close to the MEN for ease of wiring in smaller boards which all helps with
reducing installation time.
DIN Rail Mounting
All WOSOAUDP series products are supplied with a robust DIN clip, providing strong grip to the DIN rail
whing removing plugs from extension cords are the if the sockets need strong mounting strength if used
on work sites.
