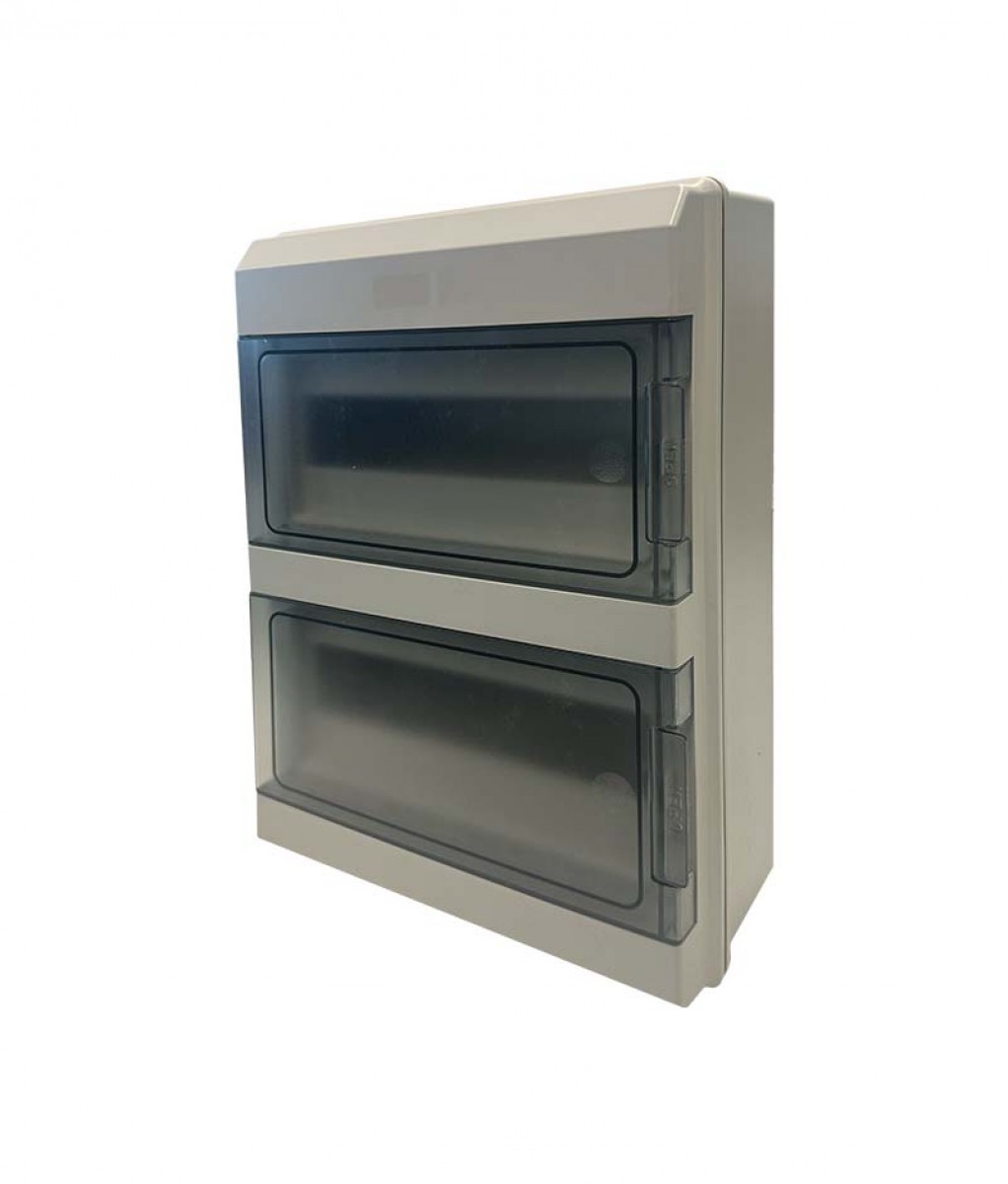

• The WOSBWP12, WOSBWP18 and WOSBWP24 are designed for outdoor surface mounting use only and intended for use to accommodate circuit protection devices such as circuit breakers; RCDs, isolating switches, surge/over-voltage protection and other such products.
• They are intended for use in domestic or commercial applications.
• They MUST be installed by a licensed electrician and follow AS/NZS3000 wiring rules.
• They comply and have been tested in accordance with AS/NZS61439.3
• IP65 from the front surfaces when mounted to AS 60529.
• Ipk: 17kA for the enclosure assembly.
• Class 2 assembly.
• 100A rated assembly and contains Neutral and Earth bars with double rows of screws.
• Parts pack includes 80A rated bus bar, sticker labelling pack in red and green for non-RCD protected and
RCD protected circuit identification, pole fillers (full and half DIN module sizes)
INTERFACE CHARACTERISTIC
Voltage ratings
Rated voltage (Un): 415V
Rated operational voltage (Ue): 415V
Rated insulation voltage (Ui) :1000V
Rated impulse withstand voltage of assembly (Uimp):4000V
Complies with minimum overvoltage category III according IEC 60364-4-44
Current ratings
Rated current of the ASSEMBLY (InA) : 100A
Rated peak withstand current (Ipk):17kA
Rated conditional short-circuit current of an ASSEMBLY (Icc):10kA
Rated diversity factor (RDF) 1-0.9
Rated frequency (fn) 50Hz
Pollution degree: 2
Indoor installation only
Fixed stationary installation.
Installation to be carried out by a skilled licensed electrician
Mechanical impact protection:IK05
For protection against electric shock requires screws to be removed to access live parts.
Type B distribution board
The rating of loose busbars. 80A end fed or 100A centre feed.
Neutral link rating : 100A
