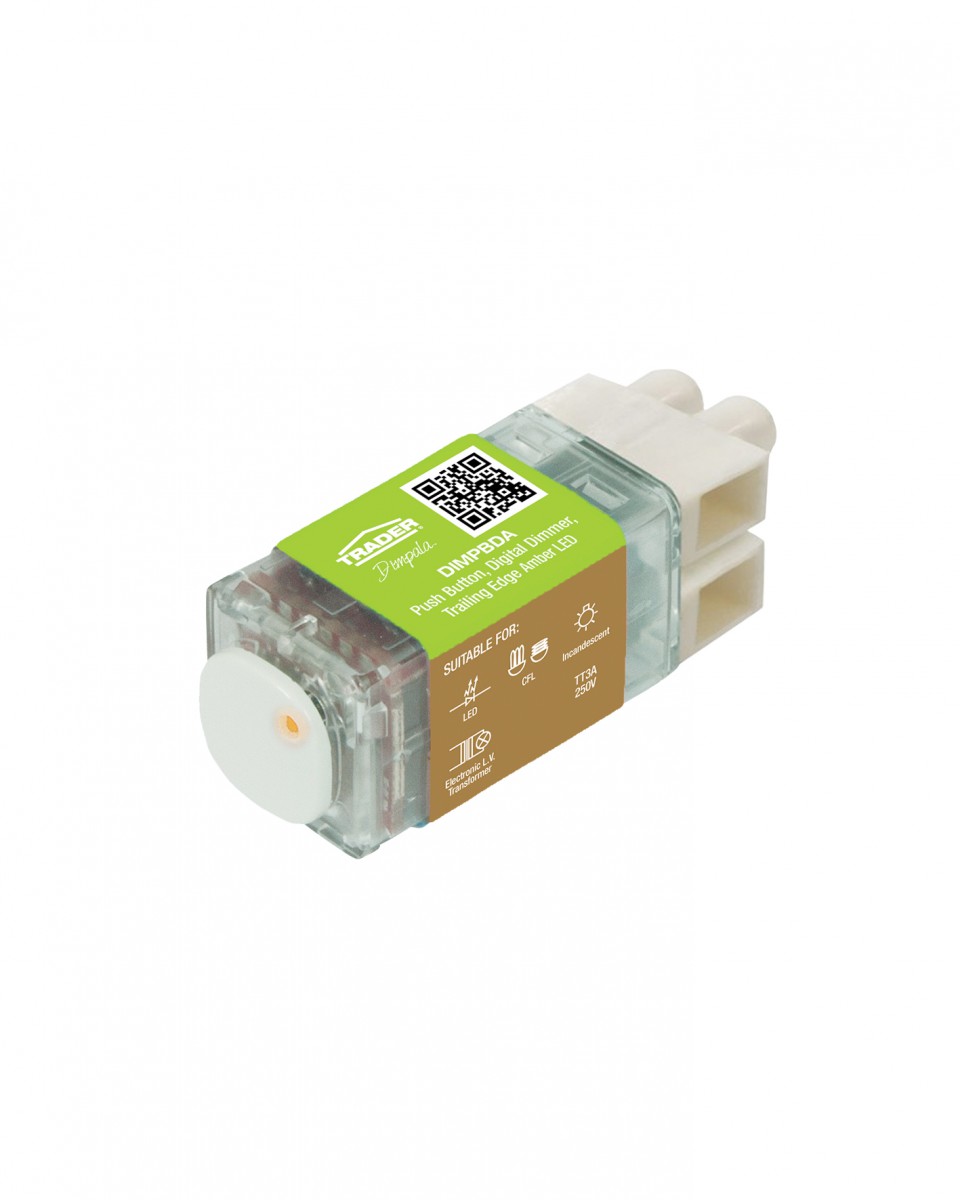

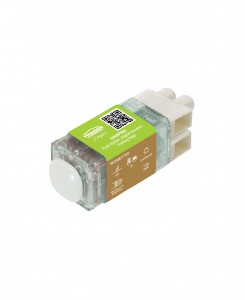

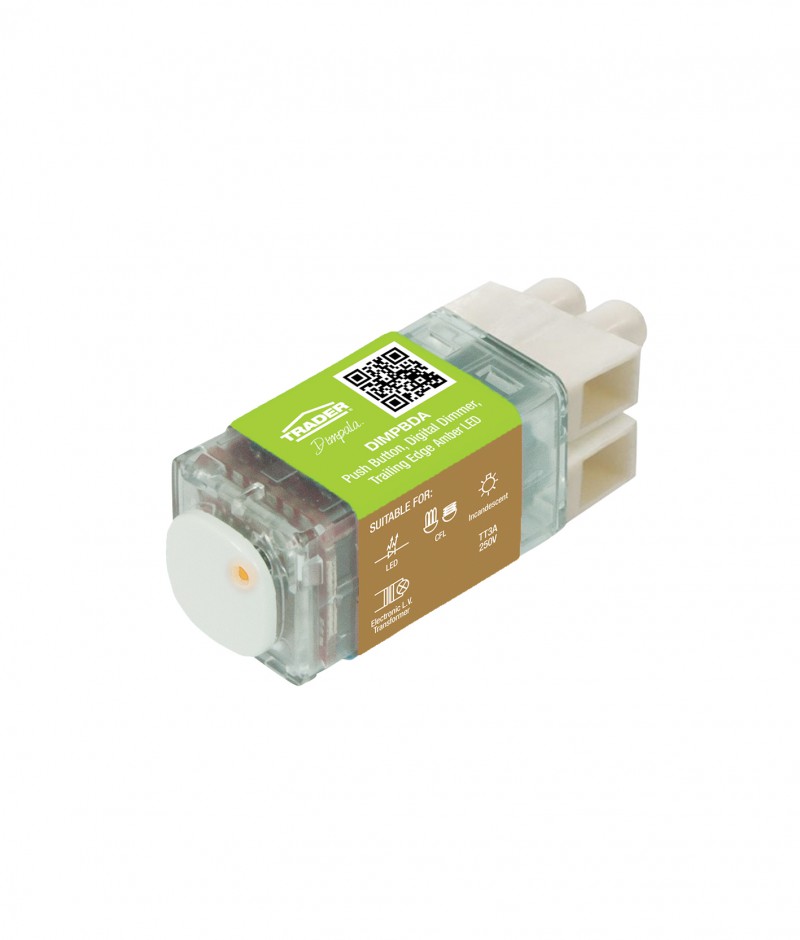

- DIMPBDA Push Button Digital Dimmer and ON/OFF switch in one - perfect for dimmable LED.
- Multi-Way Dimming and Switching when used in conjunction with MEPBMWA slave unit. Push Button Multi-Way Remote.
- Wider range - Deep Dimming to Zero on most lamps.
- Programmable minimum brightness.
- Double tap when ON - lights dim down to OFF over 30 minutes.
- Double tap when OFF - turn lights ON at previous level and ramps to full brightness over 30 minutes.
- Restarts OFF and retains settings after power loss.
- Improved patented ripple tone filtering.
- Rugged Over Current, Over Voltage and Over Temperature protection.
- Illuminated LED - configurable.
- Trailing Edge dimming with linear response.
- Suits both Trader and Clipsal* wall plates.
- Supplied with MEBU Gloss White & Gloss Black buttons, suits Puma, Cougar & Flat Cat gloss finishes.
- White, Black, Silver, Matt White & Matt Black Buttons available:
- MEBUMW & MEBUMBK (curved button for Flat Cat)
- MEBUC & MEBUCBK (flat button for Leopard and Snow Leopard)
- MEBUCSV (flat button for Snow Leopard Silver finishes)
- MEBUCMW & MEBUCMBK (flat button for Clouded Leopard matt finishes)
- NOT SUITABLE FOR FANS AND MOTORS.
Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
- Operating Voltage: 230-240Va.c. 50Hz
- Maximum Load: 350W (see table below)
- Minimum Load: 1W
- Maximum Current Capacity: 1.5A
- Connection Type: Flying leads with bootlace terminals
- Operating Temperature: 0 to +50 °C
- Certified Standard: AS/NZS 60669.2.1, CISPR15
Note: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.
View Data Sheet in Downloads to discover more details.
Dimpala Push button LED indicator programming
- The LED indicator can be set to switch OFF when the lamp is OFF. This can be useful for bedrooms where the LED indicator can be annoying. The default setting is ON.
- Setting the LED Indicator mode to OFF can also help with low wattage LED lamps that glow even when the dimmer is switched OFF, reducing the glowing effect.
To Set:
i. Hold the button down for 10 seconds until the LED indicator starts flashing. Release the button.
ii. Hold the button down for 2 seconds until the LED indicator turns OFF.
iii. Release the button - the LED indicator will start flashing again.

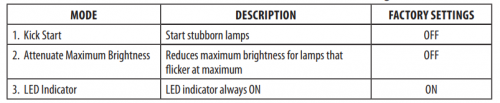

iv. Press the button 3 times to toggle the desired Operation Mode - see table below
v. When the LED indicator stops flashing the operation mode has been toggled.
NOTE: Only one mode can be toggled at a time.
For additional information please view Instructions under Downloads.
