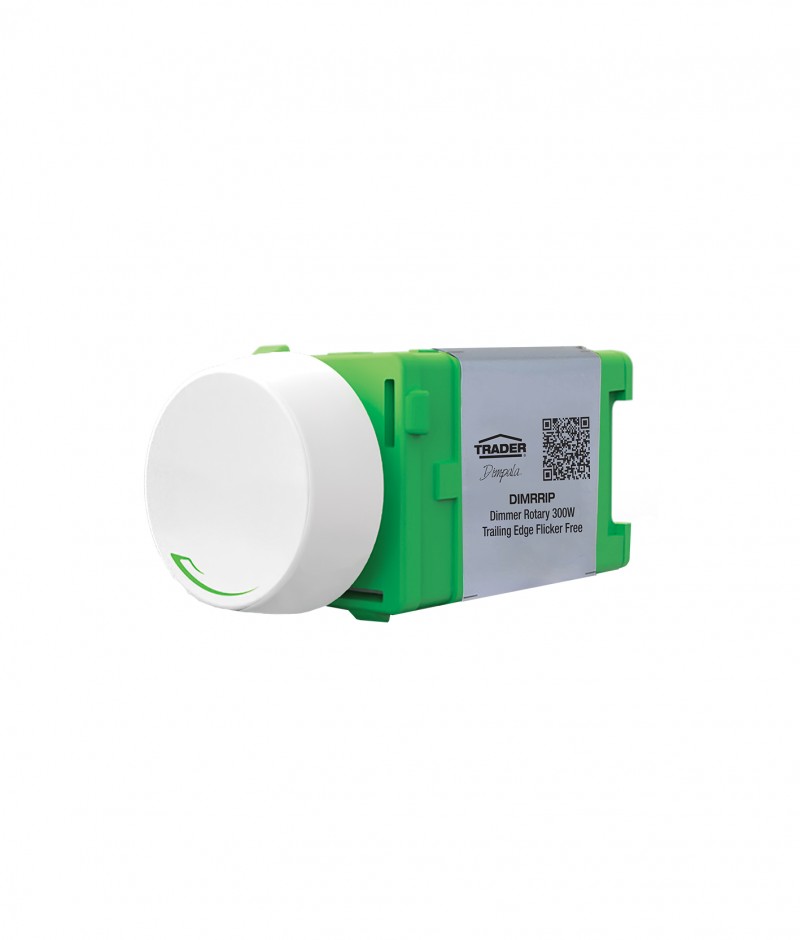

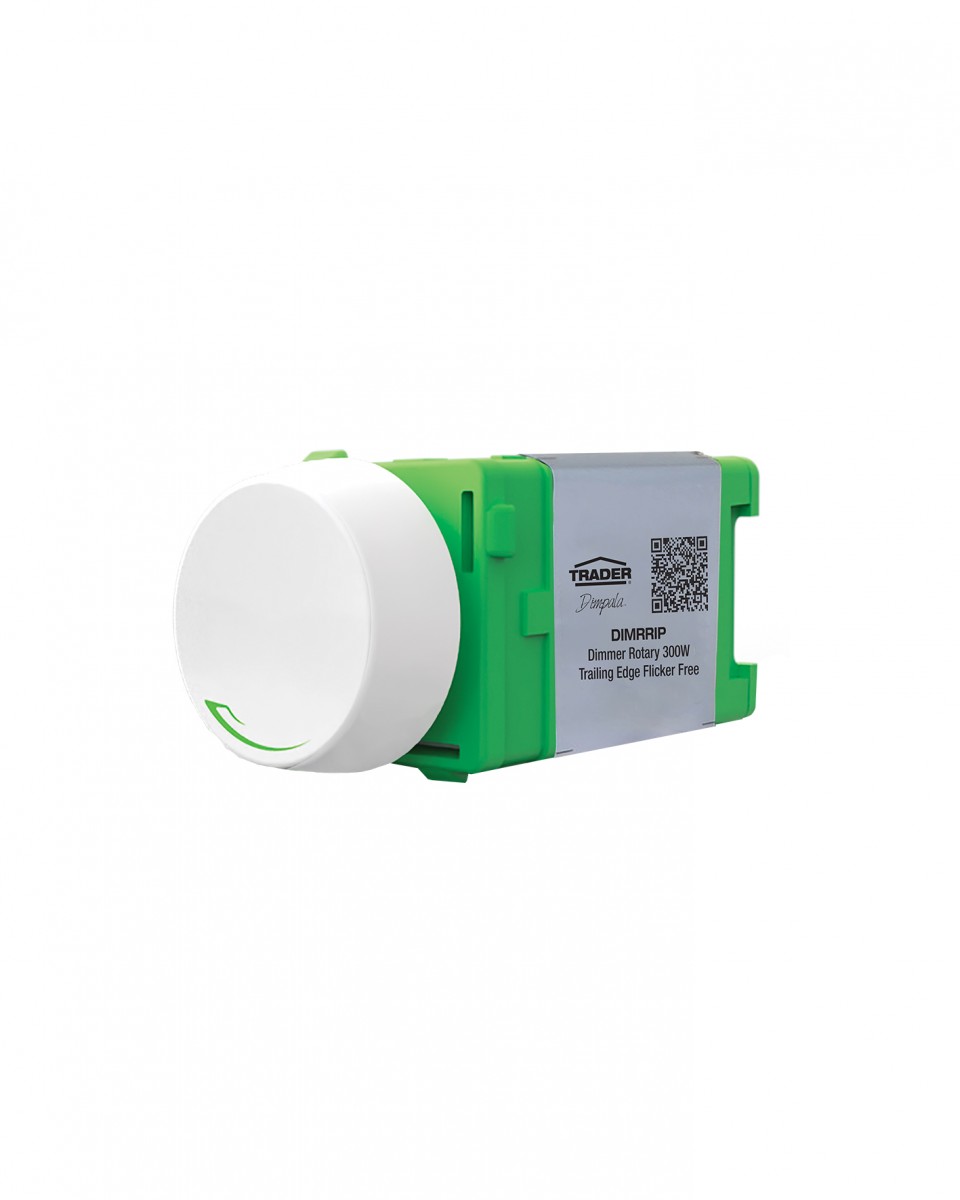

- Dimpala Eclipse Rotary Control Dimmer provides optimised dimming of LED lamps and drivers.
- This two-wire phase control [wall plate] rotary dimmer has a minimum load rating of 2W.
- Although optimised for LED lighting loads, this dimmer also provides excellent compatibility with other common lamp types such as incandescent lamps and 12V halogen (dichroic) lamps/ transformers.
- Fits Australian wall switch plate apertures (For example, the Trader range, plus #HPM and *Clipsal ranges).
- Separately switched 2-wire design - no neutral wire connection required for wallplate retrofit installation.
- Minimum brightness typical 0%.
- “Soft-start” helps prolong lamp and driver life.
- Inherent immunity to installation wiring short circuit fault.
- Complies with all relevant Australian standards.
- Mechanical Minimum Brightness setting by adjusting knob position on pot shaft.
- NOT SUITABLE FOR FANS OR MOTORS.
- 2 Year Warranty

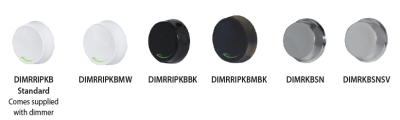

- Knob Style and Colours Available

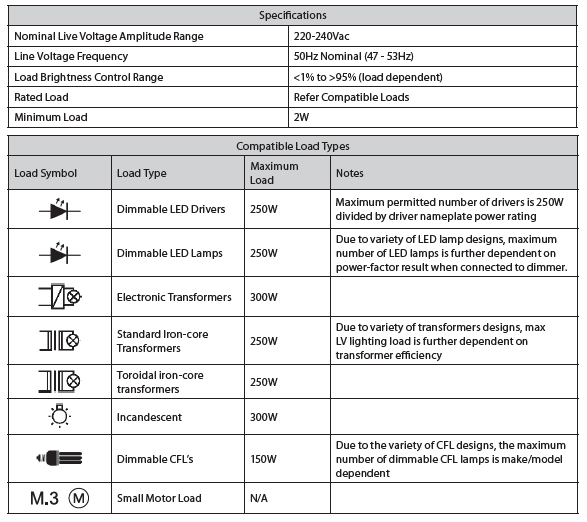

Discover more, view Data Sheet in Downloads or watch Trader’s KNOW YOUR PRODUCT VIDEOS here.
